点击放大查看

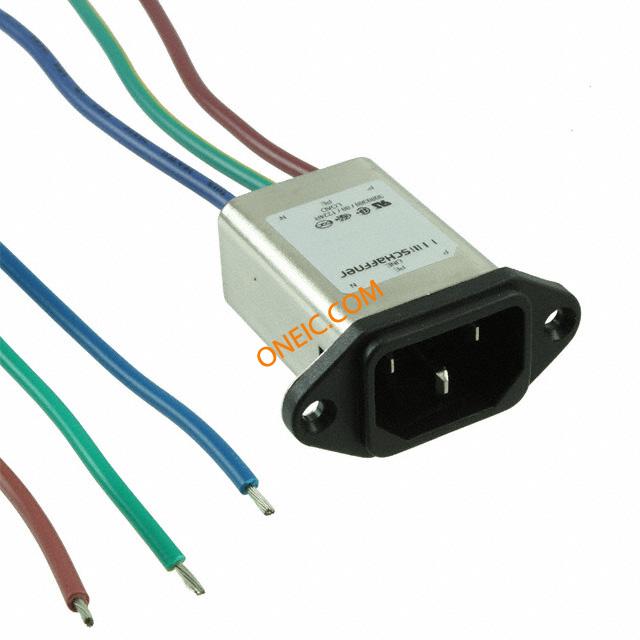

FN9222-6-07
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 6A ST 1 Port FILTER PERFORMANCE IEC INLET 6A AC Power Entry Modules 6A WIRE HOT IEC CMPACT HI-PRFM MOD SINGLEPHASEIEC-INLET6APEM,WIRELEAD,NORESISTOR |
| 分类 |
商业参数
| 产品 | Inlets | 交货时间 | 84 Days |
| 子类别 | Power Entry Module | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | 298-366 | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 电流 | 6A | 电压 | 250VAC |
| 频率 | 0 to 400 | 电感量 | 0.78mH |
| 滤波器类型 | General Purpose | 耐压额定值 | 1000VAC |
| 额定电压 | 250 VAC | 开关功能 | Not Switched |
| 供电电压 | 250VAC | 漏电流 | 373μA |
| 击穿电压 | 2000VAC | 最大额定电流 | 6 A |
| 工作频率 | DCto400Hz | 最小输入电压 | 250 |
| 典型相位噪声 (dBc/Hz) | 1 | ||
机械参数
| 深度 | 43.9 | 高度 | 22.5 |
| 安装类型 | Straight | 连接器类型 | IEC Inlet Filter |
| 安装样式 | Flange | 保险丝座类型 | Fuse Not Required |
| 总长度 | 48 | 主要材料 | ACInlet |
| 端接样式 | Wire Leads | 触点数 | 3 |
产品信息
| 类型 | Filtered | 带保险丝 | No |
| 连接器性别 | M | 系列 | FN 9222 |
| 制造商全称 | FN9222Series | 端口数 | 1 |
| 行业别名 | FN 9222-6-07, FN 9222-6/07 | ||
环境参数
| 防护等级 | IP40 | 工作温度 | - 25 C to + 85 C |
