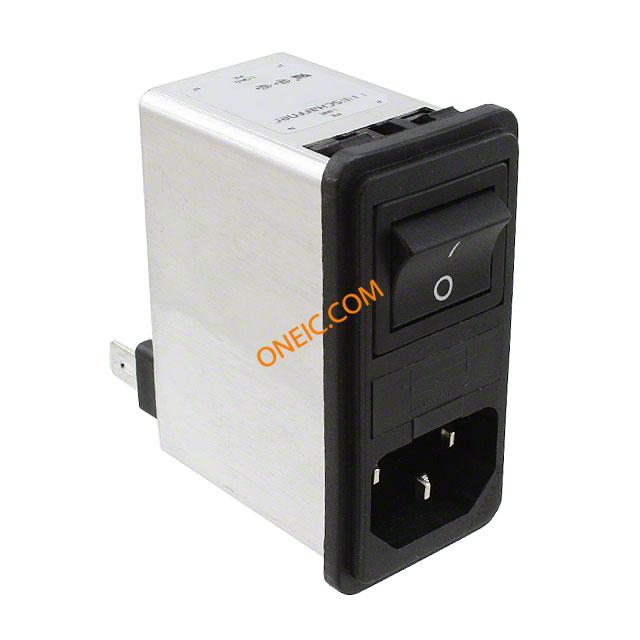

FN286B-6-06
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port MOD PWR INLET COMPACT FILTER 6A AC Power Entry Modules 6A MEDICAL FASTON COMPCT PWR ENTRY MOD FILTER, INLET, MEDICAL, DUAL FUSE, 6A SINGLEPHASEIEC-INLET6ACOMPACTPEM,WITHFUSESFASTON,MEDICAL |
| 分类 |
商业参数
| 产品 | Inlets | 交货时间 | 84 Days |
| 子类别 | Power Entry Module | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | 40 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85363010 |
| 零件状态 | 293-393 | ||
电气参数
| 电流 | 6A | 电压 | 250VAC |
| 频率 | 50 to 400 | 电容 | :220nF |
| 滤波器类型 | Medical | 额定电压 | 250 VAC |
| 极数 | 2(Fuse),2(Switch) | 开关功能 | Switched |
| 电感量范围 | :450µH | 漏电流 | 2μA |
| 最大额定电流 | 6 A | 最小输入电压 | 250 |
| 漏电流（IS(off)）（最大） | :2µA | ||
机械参数
| 深度 | :43.6mm | 宽度 | :32mm |
| 高度 | 65 | 长度 | :65mm |
| 重量 | 0.09 | 端接方式 | Spade/Solder |
| 安装类型 | Straight | 连接器类型 | IEC Inlet Filter |
| 安装样式 | Snap In | 保险丝座类型 | Included |
| 总长度 | 32 | 端接样式 | Quick Connect |
| 触点数 | 3 | 面板开孔尺寸（外形） | :61.5mm |
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 连接器性别 | M | 产品特性 | Fuse Holder, Switch On/Off Non-Illuminated |
| 端口数 | 1 | 固件版本 | Medical |
| 行业别名 | FN 286B-6-06, FN 286B-6/06 | 附加接口 | Switch/Fuse |
| 附带电池数量 | :2 | ||
环境参数
| 工作温度 | - 25 C to + 85 C | ||
