点击放大查看

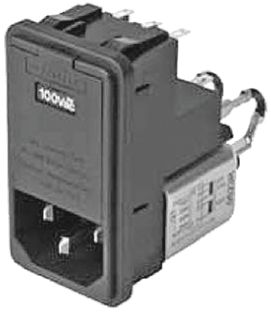

FN370-2-21
| 制造商 | |
| 描述 | MOD PWR ENTRY INLET FILTERED 2A Male IEC/EN 60939 IEC Filter Snap-In,Solder,Rated At 2A,250V ac Operating Frequency 0 to 400Hz AC Power Entry Modules 2A SNAP IN 1FUSE POWER ENTRY MODULE SINGLEPHASEIEC-INLETPEM,2AFILTER,100/120/220/240V1FUSEEUROPEANFORMAT Schaffner IEC/EN 60939 嵌入式 插头 IEC 滤波器 5 x 20mm, 焊接端接, 额定2A, 250 V 交流 |
| 分类 |
商业参数
| 产品 | Inlets | 交货时间 | 365 Days |
| 子类别 | Power Entry Module | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | 40 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | 282-280 |
电气参数
| 电流 | 2A | 电压 | 250VAC |
| 频率 | 0 → 400Hz | 滤波器类型 | General Purpose |
| 额定电压 | 250 V ac | 极数 | 1(Fuse) |
| 开关功能 | Not Switched | 漏电流 | 373μA |
| 最大额定电流 | 2A | ||
机械参数
| 深度 | 59.5mm | 宽度 | 32mm |
| 高度 | 58mm | 端接方式 | Solder |
| 安装类型 | Panel Mount, Snap-In | 连接器类型 | IEC Inlet Filter |
| 安装样式 | Snap In | 保险丝座类型 | Included |
| 端接排数 | 焊接 | 连接器 - 电缆 | IEC/EN 60939 |
| 端接样式 | Solder | 连接器/触点类型 | IEC/EN 60939 |
产品信息
| 类型 | IEC 320-C14 (Male Pins) | 带保险丝 | Yes |
| 连接器性别 | Male | 产品特性 | Fuse Holder, Switch, Voltage Selector |
| 保险丝尺寸 | 1 | 保险丝类型 | 5 x 20mm |
| 开关类型 | 没有 | 固件版本 | Standard |
| 行业别名 | FN 370-2-21 | 适用产品/相关产品 | FN370-2-21 |
环境参数
| 工作温度 | - 25 C to + 85 C | ||
