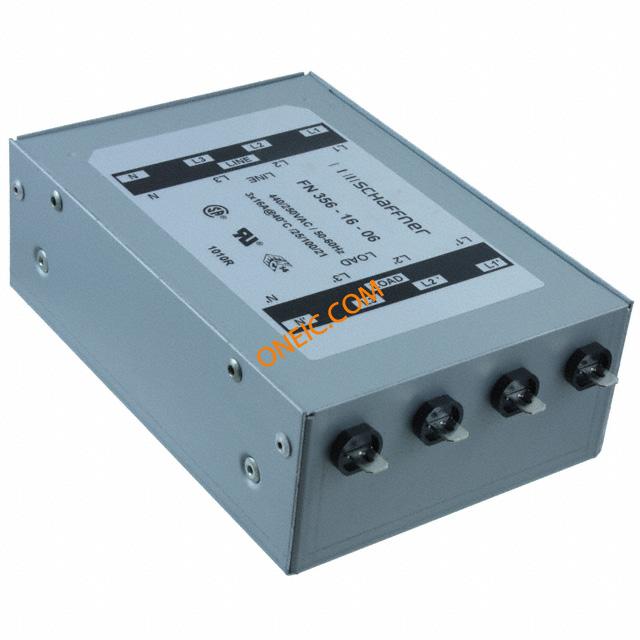

FN356-16-06
| 制造商 | |
| 描述 | FILTER 3PHASE NEUTRAL LINES 16A AC Power Line Filters 16A 440VAC 60HZ SOLDER LUG FILTER, 16A, 3 PHASE, NEUTRAL 3-PHASE16AINPUTHIGH-CURRENTFILTER,FASTON Schaffner FN 356 系列 16A 440 V ac, 60Hz 底盘安装 电源线滤波器 , 带安装片接端 |
| 分类 |
商业参数
| 交货时间 | 365 Days | 子类别 | Power Line Filter |
| 零件号别名 | - -06 16 356 FN | 产品类别 | AC Power Line Filters |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85322900 | 零件状态 | 286-444 |
| 认证机构 | CSA, ENEC, UL | ||
电气参数
| 电流 | 16A | 频率 | DC to 60 Hz |
| 电感量 | :1.2mH | 电容 | :0.68µF |
| 滤波器类型 | Three Phase (Wye) | 耐压额定值 | 1900VDC |
| 额定电压 | 440 VAC | 最大频率 | :400Hz |
| 电感量范围 | :1.2mH | 供电电压 | :IEC950 |
| 漏电流 | 0.43 mA | 击穿电压 | 2000VAC |
| 最大额定电流 | 16 A | 工作频率 | 60Hz |
| 典型相位噪声 (dBc/Hz) | 3 | 漏电流（IS(off)）（最大） | :2.85mA |
| 通态电流（It (RMS)）（最大） | :18.4A | 额定交流电压（相间） | 440V |
| 额定交流电压（相对地/中性线） | 250V | ||
机械参数
| 深度 | :149mm | 宽度 | :104mm |
| 高度 | :50mm | 长度 | :50mm |
| 重量 | :1.6kg | 安装类型 | Chassis |
| 端子类型 | :6.35mm x 0.8mm | 连接器类型 | :Quick Connect |
| 安装样式 | Chassis | 主要材料 | AC |
| 端接样式 | Quick Connect | 位数 | :Three |
产品信息
| 类型 | Filter | 系列 | FN 356 |
| 应用 | General Purpose | 制造商全称 | FN356Series |
| 配置 | Single Stage | 行业别名 | FN356-16-06 |
| 适用产品/相关产品 | FN356-16-06 | ||
环境参数
| 防护等级 | IP00 | 工作温度 | -25°C ~ 100°C |
