TSW-125-09-G-D
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole CONN HEADER 50POS .100" DBL HEADER, 2.54MM, THT VERT, 50WAY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.01 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | :2.54mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | :Phosphor Bronze | 触点数 | 50 |
| 接触件端接 | :Through Hole Vertical | 位数 | 50 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | :TSW | 加载位置数 | All |
文档与媒体
相关型号
BCS-125-L-D-PE
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 50POS .100" DUAL VERT SOCKET, 2.54MM, PASS-THRU, 2X25WAY
SSQ-125-02-S-D-RA
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 50PS DL R/A GOLD
SLW-125-01-T-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL TIN SOCKET, 2.54MM, 2X25WAY
SSQ-125-03-G-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL GOLD
ESQ-125-13-G-D
samtec inc.
Conn Elevated Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 50POS .100" DUAL GOLD SOCKET, 2.54MM, 2X25WAY, ELEVATED
SSW-125-21-S-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL GOLD
HLE-125-02-G-DV-PE-BE
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 50POS .100" GLD

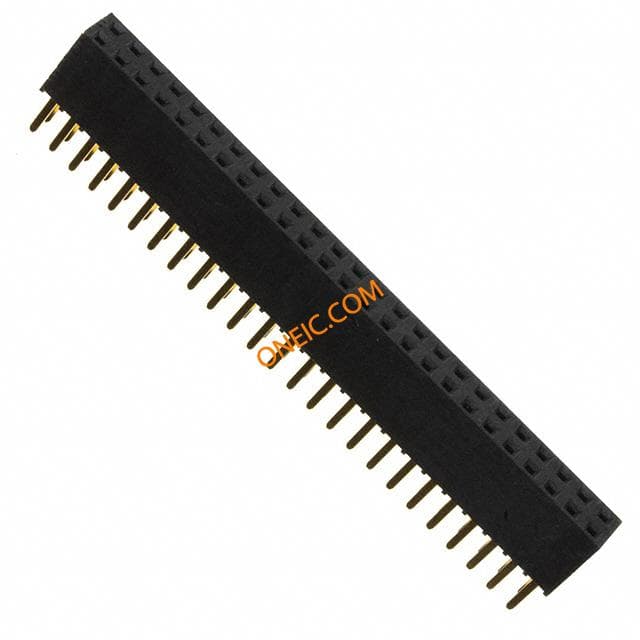

SSW-125-02-G-D
