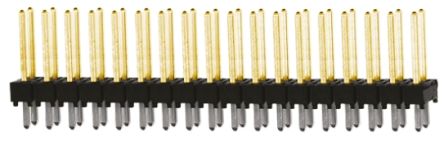

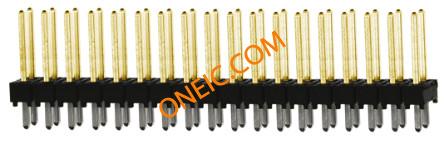

点击放大查看
TSW-118-14-L-D
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole CONN HEADER 36POS .100" DL GOLD Samtec TSW Series 2.54mm Pitch 36 Way 2 Row Straight PCB Header, Solder Termination, 7.6A HEADER, 2.54MM, THT VERT, 36WAY Samtec TSW 系列 2.54mm节距 36路 (2排) 直 引脚管座, 焊接端接, 7.6A , 通孔 |
| 分类 |
商业参数
| 其他名称 | SAM1054-18 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 额定电压 | 550 V ac | 最大额定电流 | 7.6A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | :2.54mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 触点数 | 36 |
| 接触件端接 | :Through Hole Vertical | 位数 | 36 |
| 接触长度 - 配合 | 0.320" (8.13mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TSW | 加载位置数 | All |
文档与媒体
