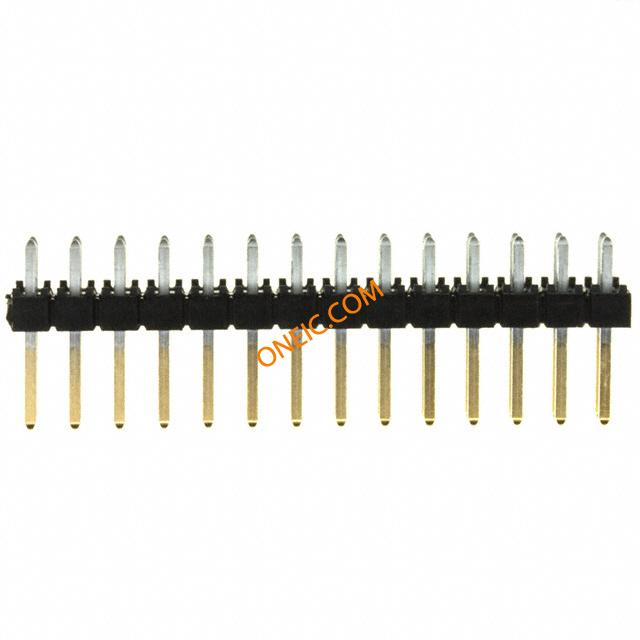

TSW-114-07-S-D
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 28 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 28 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 28POS .100" DL GOLD |
| 分类 |
商业参数
| 其他名称 | SAM1032-14 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 7.6/Contact | 最小输入电压 | 550VAC |
机械参数
| 颜色 | Black | 深度 | 5.08 |
| 间距 | 2.54 mm | 高度 | 8.38 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 35.56 |
| 触点数 | 28 | 位数 | 28 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
