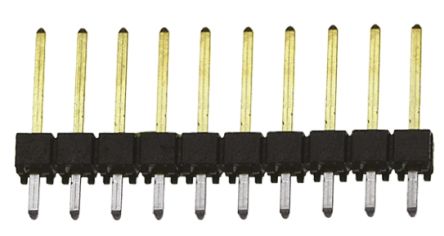

点击放大查看

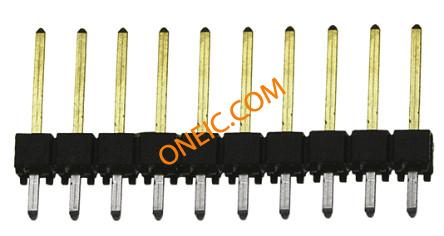

TSW-110-14-L-S

制造商	Samtec, Inc.
描述	Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole CONN HEADER 10POS .100" SGL GOLD Samtec TSW Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 7.6A HEADER, 2.54MM, THT VERT, 10WAY Samtec TSW 系列 2.54mm节距 10路 (1排) 直引脚管座, 焊接端接, 7.6A , 通孔
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1055-10

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85366930

电气参数

额定电压

550 V ac

最大额定电流

7.6A

机械参数

颜色	Black	间距	0.100" (2.54mm)
重量	0.01	包装方式	Bulk
端接方式	Solder	触头类型	Male Pin
安装类型	Through Hole	连接器类型	Header, Unshrouded
接触镀层	Gold Over Nickel	排数	1
触头材料	Phosphor Bronze	触点数	10
接触件端接	:Through Hole Vertical	位数	10
接触长度 - 配合	0.320" (8.13mm)	接触镀层厚度	10µin (0.25µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	TSW	加载位置数	All

文档与媒体

PDF 文档

htsw_th.pdf

PDF 文档

TSW_TH.PDF
