TSS-125-01-S-D
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 50POS .100" T/H GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact | ||
机械参数
| 颜色 | Black | 深度 | 9.27 |
| 间距 | 2.54 mm | 高度 | 9.27 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 67.31 |
| 触点数 | 50 | 位数 | 50 |
| 接触长度 - 配合 | 0.250" (6.35mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
相关型号
BCS-125-L-D-PE
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 50POS .100" DUAL VERT SOCKET, 2.54MM, PASS-THRU, 2X25WAY
SSQ-125-03-T-D-RA
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 50POS DL R/A TIN
SSQ-125-02-G-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL GOLD
SSQ-125-02-T-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL TIN
ESW-125-59-G-D
samtec inc.
Conn Elevated Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube CONN SOCKET .100" 50POS PCB DUAL
SSQ-125-03-G-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL GOLD
ESQ-125-13-G-D
samtec inc.
Conn Elevated Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 50POS .100" DUAL GOLD SOCKET, 2.54MM, 2X25WAY, ELEVATED
SSW-125-21-S-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL GOLD
SSW-125-02-G-D
samtec inc.
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 50POS DUAL GOLD Samtec SSW Series 2.54mm 50 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, DUAL, 50WAY Samtec SSW 系列 2行 50路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
ESW-125-12-F-D
samtec inc.
Conn Elevated Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube CONN SOCKET .100" 50POS PCB DUAL

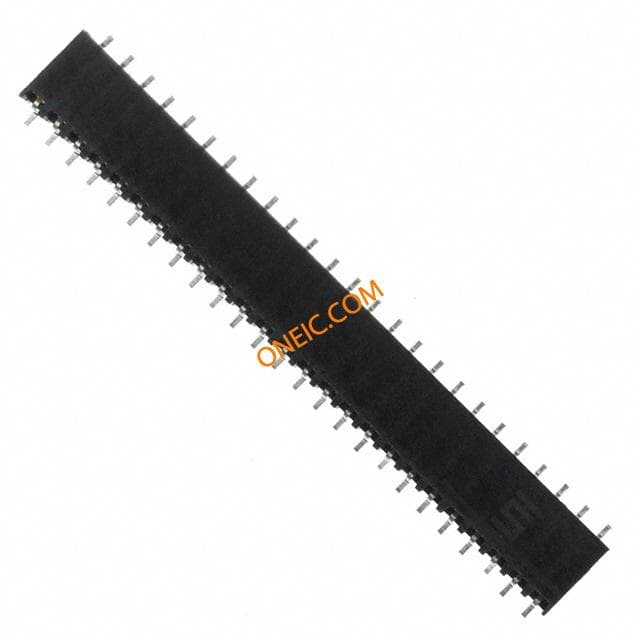

SSM-125-S-DH
