TMM-109-01-T-S

点击放大查看

TMM-109-01-T-S

制造商
Samtec, Inc.
描述
Conn Unshrouded Header HDR 9 POS 2mm Solder ST Thru-Hole Conn Unshrouded Header HDR 9 POS 2mm Solder ST Thru-Hole Bulk CONN HEADER 9POS SNGL 2MM T/H HEADER, 2.0MM, 1X9WAY
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称SAM1178-09标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010

电气参数

最大额定电流3.9最小输入电压500VAC

机械参数

颜色Black深度1.97
间距2 mm高度4.7
重量0.0003包装方式Bulk
端接方式Solder触头类型Male Pin
外壳颜色Black安装类型Through Hole
连接器类型Header, Unshrouded接触镀层Tin Over Nickel
排数1触头材料Phosphor Bronze
壳体材料Liquid Crystal Polymer总长度18
触点数9接触件端接:Through Hole Vertical
位数9接触长度 - 配合0.126" (3.20mm)

产品信息

类型Unshrouded Header连接器性别HDR
系列:-加载位置数All

文档与媒体

PDF 文档
TMM Series_TH Spec Sheet

相关型号

MMS-109-01-L-SH

MMS-109-01-L-SH

samtec inc.

Conn Socket Strip SKT 9 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM 9POS SGL HORZ PCB SOCKET, 2.0MM, HORIZ, 1X9WAY

¥9.0600
详情
MMS-109-02-T-SH

MMS-109-02-T-SH

samtec inc.

Conn Socket Strip SKT 9 POS 2mm Solder RA SMD Tube CONN RCPT 2MM 9POS SGL HORZ SMD

¥6.0744
详情
MMS-109-01-L-SV

MMS-109-01-L-SV

samtec inc.

Conn Socket Strip SKT 9 POS 2mm Solder ST Thru-Hole Tube CONN RCPT 2MM 9POS SGL VERT PCB SOCKET, 2.0MM, VERT, 1X9WAY

¥14.1934
详情
SQT-109-01-L-S

SQT-109-01-L-S

samtec inc.

Conn Socket Strip SKT 9 POS 2mm Solder ST Thru-Hole Tube CONN RCPT 2MM 9POS SGL VERT PCB

¥10.8236
详情
SMM-109-02-S-S

SMM-109-02-S-S

samtec inc.

Conn Socket Strip SKT 9 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 9POS SGL GOLD SMD Samtec 2mm 9 Way 1 Row Straight PCB Socket Surface Mount Socket Strip SOCKET, 2.0MM, SMT, 1X9WAY

¥9.0600
详情

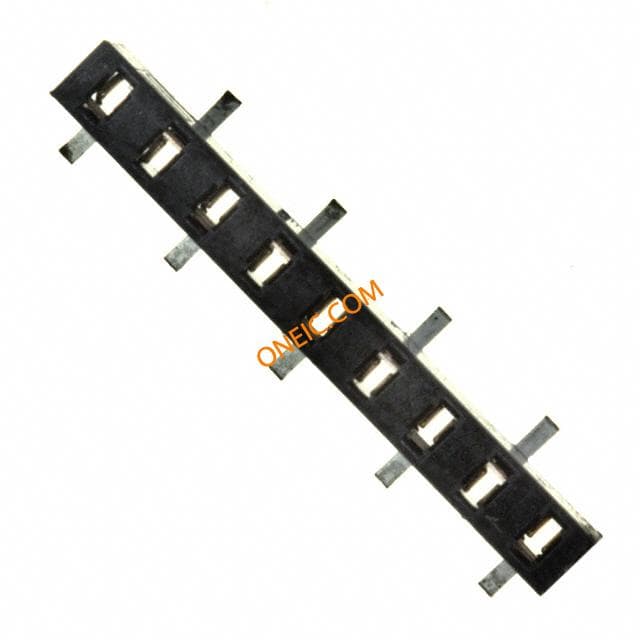

MMS-109-02-L-SV
