点击放大查看
TMM-106-01-G-D-SM
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 12 POS 2mm Solder ST SMD Tube CONN HEADER 12POS DUAL 2MM SMD Samtec TMM Series 2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3.9A HEADER, 2MM, DUAL SMD, 12WAY Samtec TMM 系列 2mm节距 12路 (2排) 直 引脚管座, 焊接端接, 3.9A , 表面安装 |
| 分类 |
商业参数
| 其他名称 | SAM1167-06 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 500 V ac | 最大额定电流 | 3.9A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2mm |
| 柱间距 | :2mm | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 连接器颜色 | :Black | 触点数 | 12 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 12 |
| 接触长度 - 配合 | 0.126" (3.20mm) | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TMM | CAD图纸 | 3D CAD Model |
| 加载位置数 | All | ||
环境参数
| 工作温度 | :125°C | ||
文档与媒体
相关型号
SQW-106-01-L-D-VS
samtec inc.
Conn Socket Strip SKT 12 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 12POS DL VERT SMD SOCKET, 2.0MM, SMT, 2X6WAY
SMM-106-02-S-D
samtec inc.
Conn Socket Strip SKT 12 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 12POS DL GOLD SMD Samtec 2mm 12 Way 2 Row Straight PCB Socket Surface Mount Socket Strip RECEPTACLE, 2MM, DUAL, 12WAY Samtec 2行 12路 直 2mm节距 表面贴装 印刷电路板插座, 插座板
SMM-106-02-S-D-P-TR
samtec inc.
Conn Socket Strip SKT 12 POS 2mm Solder ST SMD T/R CONN RCPT 2MM 12POS SMD
CLT-106-02-G-D
samtec inc.
Conn Socket Strip SKT 12 POS 2mm Solder ST SMD Tube CONN RCPT 12POS DUAL 2MM SMD

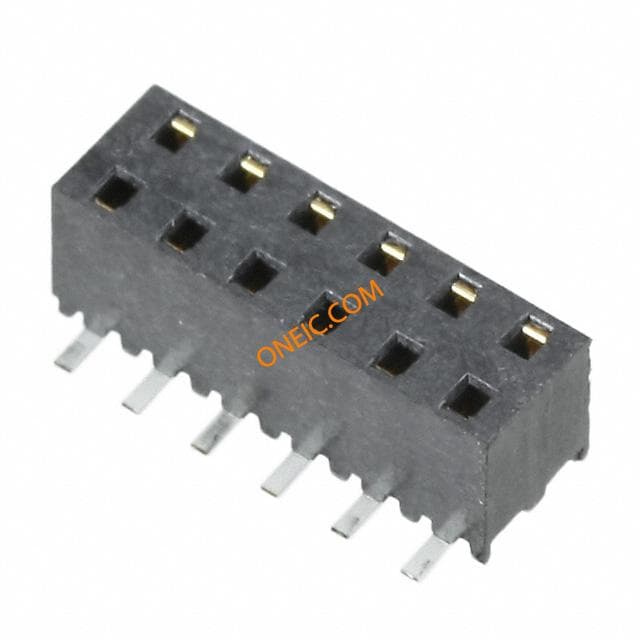

MMS-106-02-L-DV
