点击放大查看

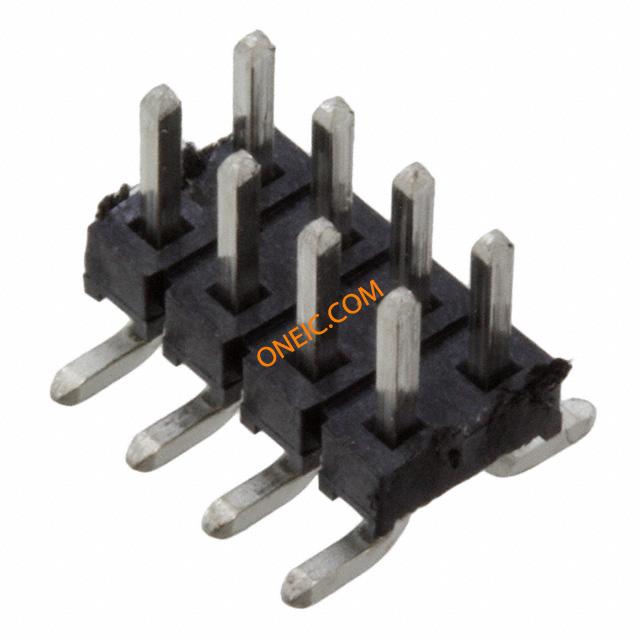

TMM-104-01-T-D-SM
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 8 POS 2mm Solder ST SMD Tube CONN HEADER 8POS DUAL 2MM SMD HEADER, 2.0MM, SMT, 2X4WAY |
| 分类 |
商业参数
| 其他名称 | SAM1171-04 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 3.9/Contact | 最小输入电压 | 500VAC |
机械参数
| 颜色 | Black | 深度 | 3.94 |
| 间距 | 2 mm | 高度 | 5.97 |
| 重量 | 0.0002 | 包装方式 | Tube |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Matte Tin Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 8 | 触点数 | 8 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 8 |
| 接触长度 - 配合 | 0.126" (3.20mm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | :- | 加载位置数 | All |
