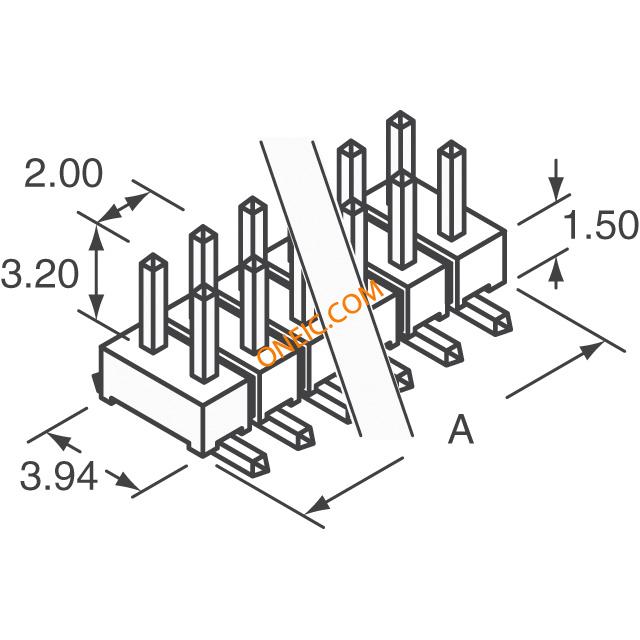

TMM-104-01-S-D-SM
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 8 POS 2mm Solder ST SMD Tube CONN HEADER 8POS DUAL 2MM SMD |
| 分类 |
商业参数
| 其他名称 | SAM1169-04 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3.9 A | 最小输入电压 | 500VAC |
| 最小供电电压 | 500VAC | ||
机械参数
| 颜色 | Black | 深度 | 3.94 mm |
| 间距 | 2 mm | 高度 | 5.97 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Surface Mount | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 8 mm | 触点数 | 8 |
| 位数 | 8 | 接触长度 - 配合 | 0.126" (3.20mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 125C | ||
文档与媒体
