点击放大查看

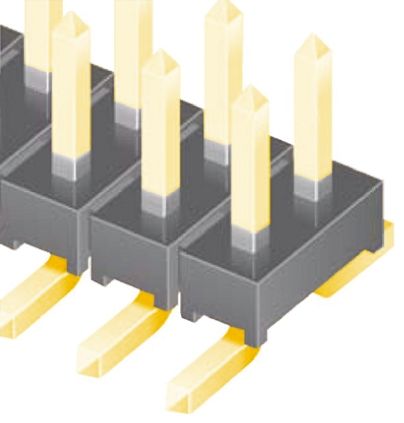

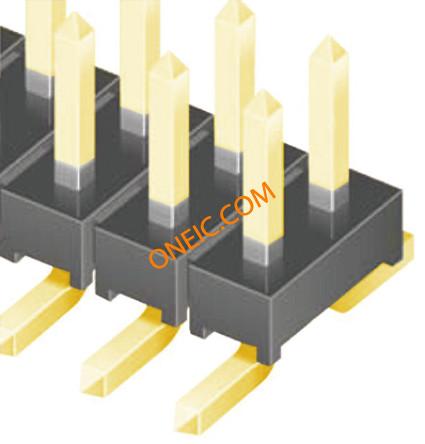

TMM-103-01-G-D-SM
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 6 POS 2mm Solder ST SMD Tube CONN HEADER 6POS DUAL 2MM SMD Samtec TMM Series 2mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 3.9A HEADER, 2MM, DUAL SMD, 6WAY Samtec TMM 系列 2mm节距 6路 (2排) 直 引脚管座, 焊接端接, 3.9A , 表面安装 |
| 分类 |
商业参数
| 其他名称 | SAM1167-03 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 500 V ac | 最大额定电流 | 3.9A |
| 最小输入电压 | 500VAC | ||
机械参数
| 颜色 | Black | 深度 | 3.94 |
| 间距 | 2 mm | 高度 | 5.97 |
| 重量 | 0.001 | 包装方式 | Tube |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2mm |
| 柱间距 | :2mm | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 6 | 连接器颜色 | :Black |
| 触点数 | 6 | 接触件端接 | :Surface Mount Vertical |
| 位数 | 6 | 接触长度 - 配合 | 0.126" (3.20mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TMM | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
文档与媒体
相关型号
SMM-103-02-S-D
samtec inc.
Conn Socket Strip SKT 6 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 6POS DL GOLD SMD SOCKET, 2.0MM, SMT, 2X3WAY

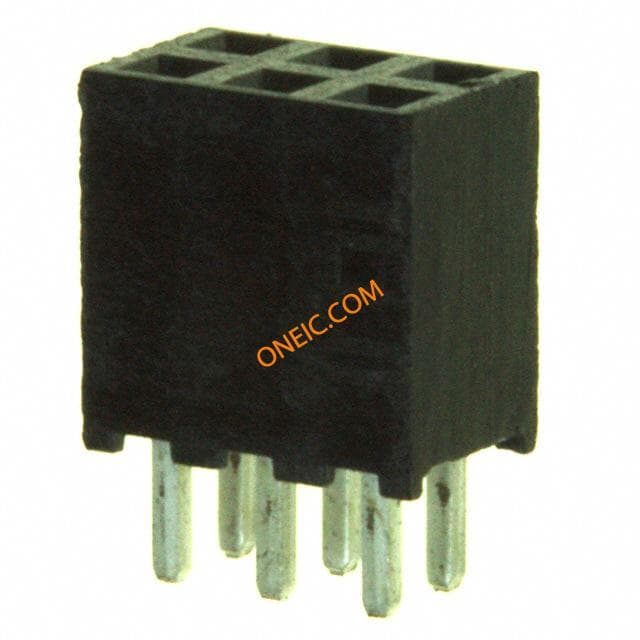

SQT-103-01-L-D-RA
samtec inc.
Conn Socket Strip SKT 6 POS 2mm Solder RA Thru-Hole CONN RCPT 2MM 6POS DL GOLD R/A Receptacle 2mm horizontal 3+3way RECEPTACLE, 2MM, R/A, 6WAY Samtec SQT 系列 2行 6路 直角 2mm节距 通孔 印刷电路板插座, 板对板
SQT-103-01-F-D
samtec inc.
Conn Socket Strip SKT 6 POS 2mm Solder ST Thru-Hole CONN RCPT 2MM 6POS GOLD
CLT-103-02-G-D
samtec inc.
Conn Socket Strip SKT 6 POS 2mm Solder ST SMD CONN RCPT 6POS DUAL 2MM SMD

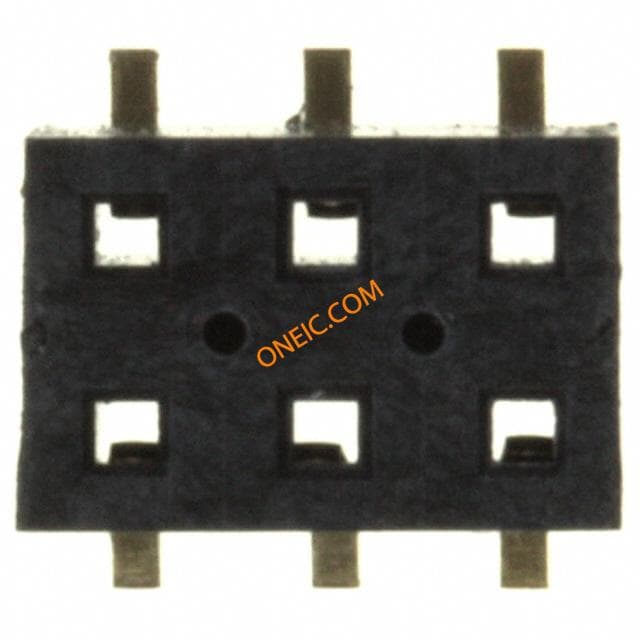

TLE-103-01-G-DV
