点击放大查看

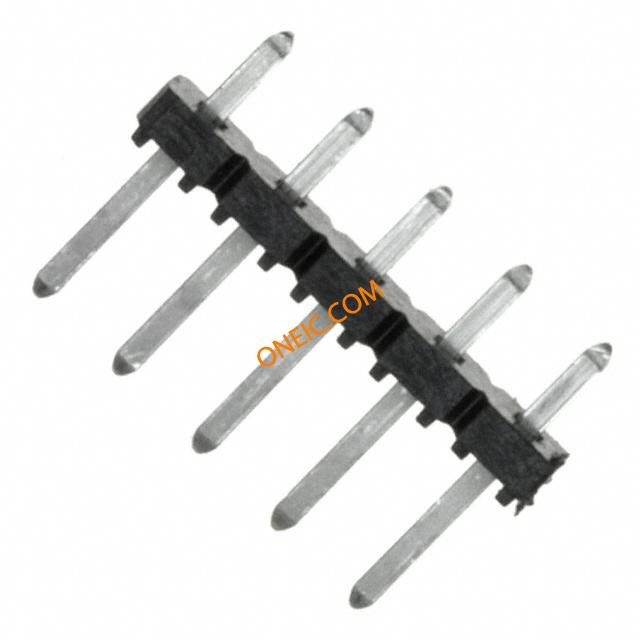

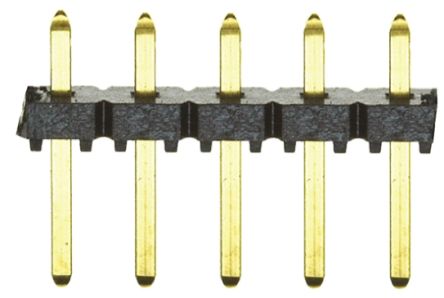

TLW-105-05-G-S

制造商	Samtec, Inc.
描述	Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole CONN HEADER .100" 5POS SGL GOLD Samtec TLW Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 3A HEADER, 2.54MM, SINGLE, 5WAY Samtec TLW Flex Stack 系列 2.54mm节距 5路 (1排) 直引脚管座, 焊接端接, 3A , 通孔
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1098-05

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

最大额定电流

机械参数

颜色	Black	深度	2.48
间距	2.54 mm	高度	4.19
重量	0.001	包装方式	Bulk
端接方式	Solder	触头类型	Male Pin
引脚间距	:2.54mm	外壳颜色	Black
安装类型	Straight	连接器类型	Header, Unshrouded
接触镀层	Gold Over Nickel	排数	1
触头材料	Phosphor Bronze	壳体材料	Liquid Crystal Polymer
总长度	12.7	连接器颜色	:Black
触点数	5	接触件端接	:Through Hole Vertical
位数	5	接触长度 - 配合	0.105" (2.67mm)
接触镀层厚度	10µin (0.25µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	TLW	加载位置数	All

环境参数

工作温度

:125°C

文档与媒体

PDF 文档

TLW_TH.PDF

PDF 文档

82119.pdf

相关型号

SSQ-105-01-G-S

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 5POS SNGL GOLD

¥6.5273

详情

暂无图片

ESW-105-23-T-S

samtec inc.

Conn Elevated Socket SKT 5 POS 2.54mm Solder ST Thru-Hole CONN RECEPT 5POS .100 VERT PCB

¥7.9516

详情

SSW-105-02-G-S-RA

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 5POS R/A SGL AU Samtec SSW Series 2.54mm 5 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, R/A SINGLE, 5WAY Samtec SSW 系列 5路直角 2.54mm节距通孔印刷电路板插座, 板对板

¥12.4733

详情

SSQ-105-02-G-S

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 5POS SNGL GOLD

¥3.1205

详情

SSQ-105-02-T-S-RA

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 5POS SGL R/A TIN

¥4.0215

详情

SLW-105-01-T-S

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 5POS SNGL TIN SOCKET, 2.54MM, 1X5WAY

¥4.1818

详情

CES-105-01-S-S

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 5POS .100" SNGL GOLD

¥3.5360

详情

SLW-105-01-G-S

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 5POS SNGL GOLD

¥5.8630

详情

SSW-105-01-T-S

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 5POS SNGL TIN SOCKET, 2.54MM, 1X5WAY

¥5.8092

详情

SSQ-105-01-S-S

samtec inc.

Conn Socket Strip SKT 5 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 5POS SNGL GOLD

¥2.8764

详情

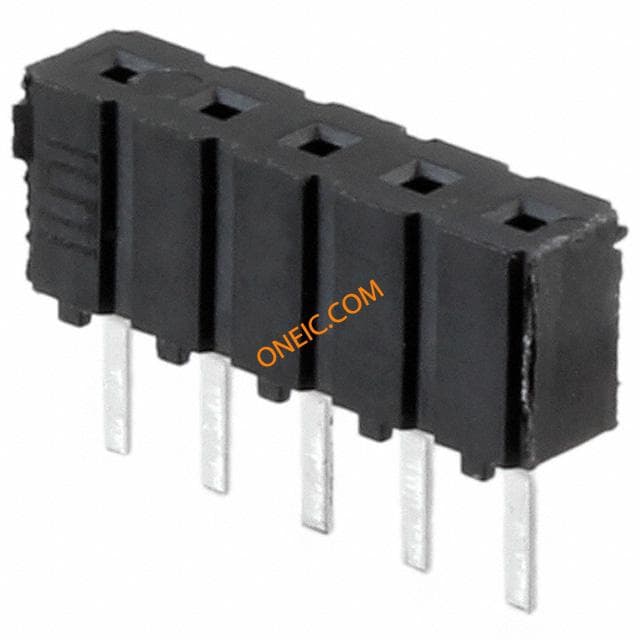

CES-105-01-T-S
