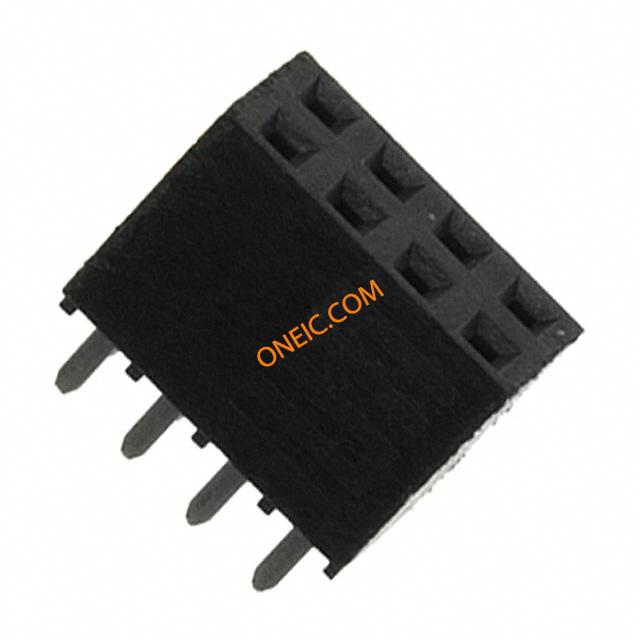

点击放大查看
SSW-104-01-T-D
| 制造商 | Samtec, Inc. |
| 描述 | Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 8POS DUAL TIN |
| 分类 |
商业参数
| 其他名称 | SAM1212-04 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 6.9/Contact |
| 最小输入电压 | 550VAC | ||
机械参数
| 颜色 | Black | 深度 | 4.95 |
| 间距 | 2.54 mm | 高度 | 8.51 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 10.67 |
| 触点数 | 8 | 位数 | 8 |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 加载位置数 | All | ||
