点击放大查看

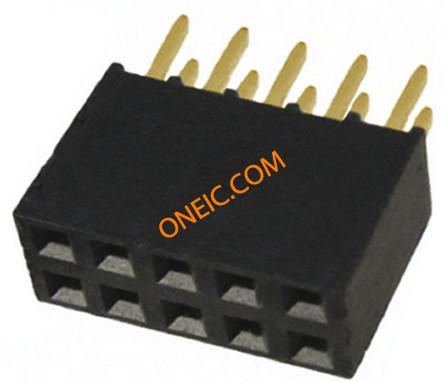

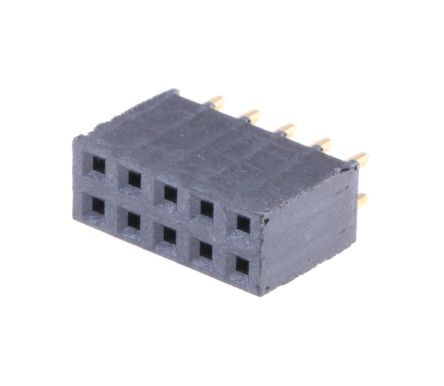

SSQ-105-01-G-D
| 制造商 | |
| 描述 | Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 10POS DUAL GOLD Samtec SSQ Series 2.54mm 10 Way 2 Row Straight PCB Socket Through Hole Board to Board Samtec SSQ 系列 2行 10路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| 分类 |
商业参数
| 其他名称 | SAM1179-05 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 550 V ac | 接触电阻 | 10 |
| 最大额定电流 | 7.6A | 最小输入电压 | 550VAC |
机械参数
| 颜色 | Black | 深度 | 4.95 |
| 间距 | 2.54 mm | 高度 | 8.51 |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 13.21 | 端接排数 | 焊接 |
| 触点数 | 10 | 位数 | 10 |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | SSQ | 加载位置数 | All |
