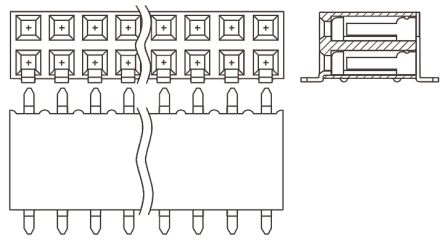

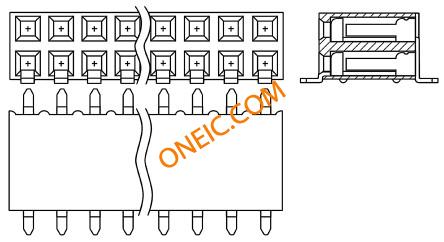

点击放大查看
SSM-110-L-DH
| 制造商 | |
| 描述 | Conn Socket Strip SKT 20 POS 2.54mm Solder RA SMD Tube CONN RCPT .100" 20POS DUAL HORZ Samtec SSM Series 2.54mm 20 Way 2 Row Right Angle PCB Socket Surface Mount Board to Board RECEPTACLE, 2.54MM, HORZ, 20WAY Samtec SSM 系列 2行 20路 直角 2.54mm节距 表面贴装 印刷电路板插座, 板对板 |
| 分类 |
商业参数
| 其他名称 | SAM1145-10 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 450 V ac | 接触电阻 | :10mohm |
| 最大额定电流 | 6.9A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.001 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 引脚间距 | :2.54mm |
| 柱间距 | :2.54mm | 安装类型 | Surface Mount, Right Angle |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 连接器颜色 | :Black | 触点数 | 20 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 20 |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | SSM | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
