点击放大查看

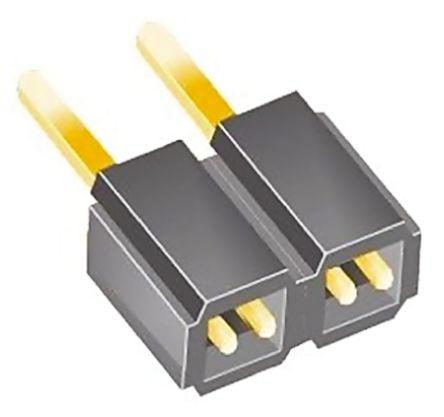

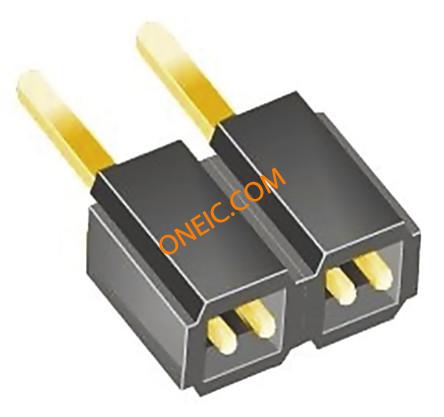

SLW-102-01-G-S
| 制造商 | |
| 描述 | Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 2POS SNGL GOLD Receptacle 2.54mm low profile 2 way Samtec SLW 系列 2路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| 分类 |
商业参数
| 其他名称 | SAM1089-02 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 550 V ac | 接触电阻 | 10 |
| 最大额定电流 | 7.1A | 最小输入电压 | 550VAC |
机械参数
| 颜色 | Black | 深度 | 2.54 |
| 间距 | 0.100" (2.54mm) | 高度 | 4.57 |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 5.08 | 端接排数 | 焊接 |
| 板面高度 | 0.180" (4.57mm) | 触点数 | 2 |
| 位数 | 2 | 接触镀层厚度 | 20µin (0.51µm) |
| 堆叠高度（配合） | 0.240" (6.09mm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | SLW | 加载位置数 | All |
