点击放大查看

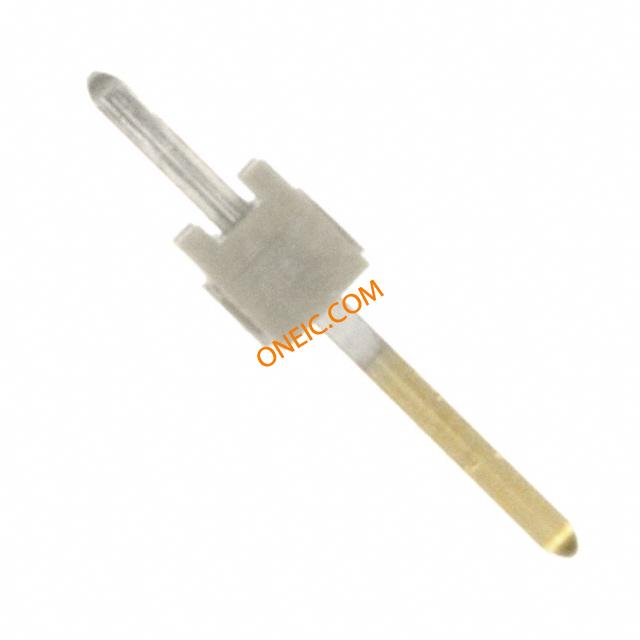

HTSW-101-23-L-S
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 1 POS Solder ST Thru-Hole CONN UNSHROUDED HEADER 1 POS SOL HEADER, 2.54MM, VERTICAL THT, 1WAY |
| 分类 |
商业参数
| 其他名称 | Q4017551M | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 最大额定电流 | 7.6/Contact | 最小输入电压 | 550VAC |
机械参数
| 颜色 | Natural | 深度 | 2.48 |
| 间距 | 0.100" (2.54mm) | 高度 | 8.38 |
| 重量 | 0.1 | 包装方式 | Tube |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 2.54 |
| 触点数 | 1 | 接触件端接 | :Through Hole Vertical |
| 位数 | 1 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | :HTSW | 加载位置数 | All |
