ESQ-120-37-G-D
| 制造商 | Samtec, Inc. |
| 描述 | Conn Elevated Socket SKT 40 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 40POS .100" DUAL GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 6.9/Contact |
| 最小输入电压 | 550VAC | ||
机械参数
| 颜色 | Black | 深度 | 4.95 |
| 间距 | 2.54 mm | 高度 | 11.05 |
| 包装方式 | Tube | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 51.31 |
| 触点数 | 40 | 位数 | 40 |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Elevated Socket | 连接器性别 | SKT |
| 加载位置数 | All | ||
相关型号
TSM-120-01-S-DV-P-TR
samtec inc.
Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST SMD T/R CONN HEADER 40POS .100" DBL SMD
TSM-120-01-S-DV
samtec inc.
Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST SMD Tube CONN HEADER 40POS .100" DBL SMD HEADER, 2.54MM, SMT, 40WAY

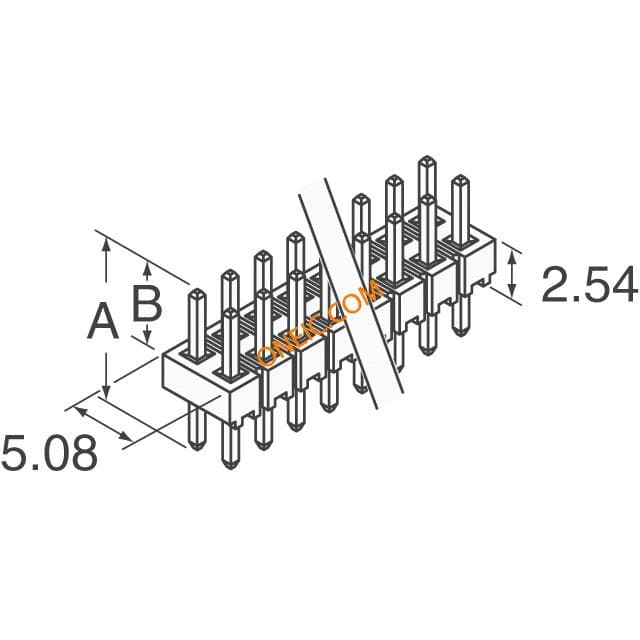

TSW-120-23-S-D
