点击放大查看

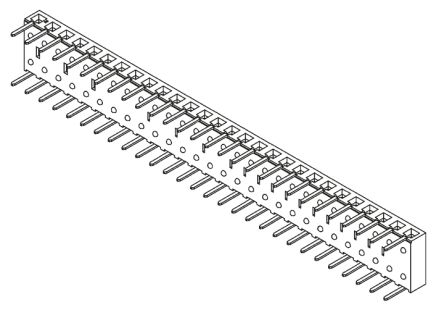

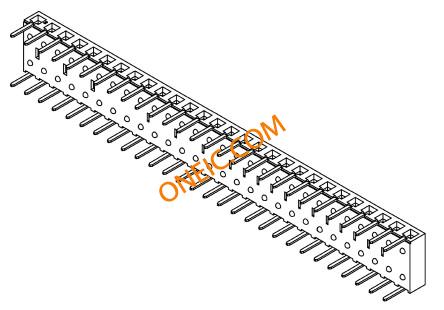

BCS-128-L-S-HE
| 制造商 | |
| 描述 | Conn Socket Strip SKT 28 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 28POS .100" SNGL HORZ Samtec BCS Series 2.54mm 28 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, HORZ, 28WAY Samtec BCS 系列 28路 直角 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| 分类 |
商业参数
| 其他名称 | SAM1009-28 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 450 V ac | 最大额定电流 | 5.9A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 宽度 | :7.87mm | 重量 | 0.001 |
| 包装方式 | Tube | 端接方式 | Solder |
| 引脚间距 | :2.54mm | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 连接器颜色 | :Black | 板面高度 | 0.125" (3.17mm) |
| 触点数 | 28 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 28 | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | BCS | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
