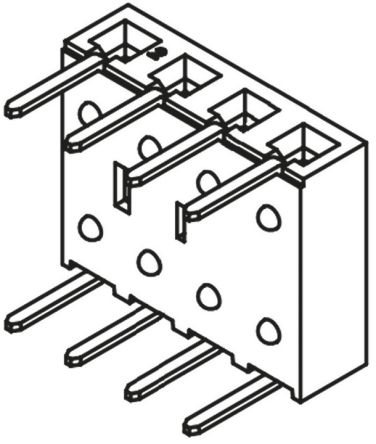

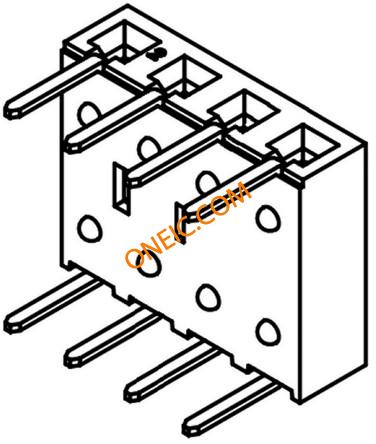

BCS-104-L-S-HE

点击放大查看

BCS-104-L-S-HE

制造商
Samtec, Inc.
描述
Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole Bulk CONN RCPT 4POS .100" SNGL HORZ Samtec BCS Series 2.54mm 4 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, HORZ, 4WAY Samtec BCS 系列 4路 直角 2.54mm节距 通孔 印刷电路板插座, 板对板
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

交货时间30 Days其他名称SAM1009-04
子类别Connector Headers and PCB Receptacles标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010

电气参数

额定电压450 V ac接触电阻10
最大额定电流5.9A最小输入电压450VAC

机械参数

颜色Black深度8.13
间距2.54 mm宽度:7.87mm
高度3.18重量0.001
包装方式Bulk端接方式Solder
引脚间距:2.54mm外壳颜色Black
安装类型Through Hole连接器类型Receptacle
接触镀层Gold Over Nickel排数1
触头材料Phosphor Bronze壳体材料Liquid Crystal Polymer
总长度10.16连接器颜色:Black
板面高度0.125" (3.17mm)触点数4
接触件端接:Through Hole Right Angle位数4
接触镀层厚度10µin (0.25µm)

产品信息

类型Socket Strip连接器性别SKT
系列BCS加载位置数All

环境参数

工作温度:125°C

文档与媒体

PDF 文档
bcs.pdf
PDF 文档
81213.pdf
