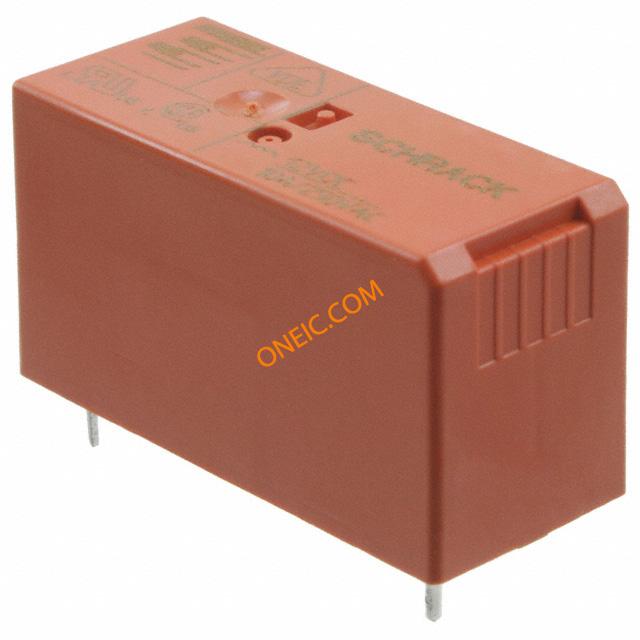

4-1393239-7
| 制造商 | |
| 描述 | Electromechanical Relay SPST-NO 15A 12VDC 576Ohm Through Hole General Purpose Relays RT184012 Reinforced PCB Relays up to 16A RELAY GEN PURPOSE SPST 10A 12V General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 1A SPST-NO Current: 10 Amps Mounting: PC Board Operating Function: Single Side Stable |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265C |
| 认可国家 | UL Recognized, CSA Certified, SEV Approved, VDE Component Mark | RoHS/ELV合规声明 | Converted to comply with RoHS directive |
| FCC Part 68隔离 | n/a | ||
电气参数
| 电流 | 10 Amps | 线圈类型 | Non Latching |
| 核心类型 | Monostable | 线圈功率 | 250 mW |
| 线圈电流 | 20.8mA | 释放时间 | 8ms |
| 输入功率 | 250 mW | 可见输出 | Without |
| 线圈电阻 | 576 Ohms | 供电电压 | 12VDC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 1.2 VDC |
| 二极管配置 | Without | 额定电流 - 串联 | Sensitive |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9 VDC | 触点额定电流 | 10A |
机械参数
| 包装方式 | Tube | 端接方式 | Printed Circuit Terminals |
| 触点形式 | SPST-NO (1 Form A) | 致动器类型 | DC |
| 安装类型 | Through Hole | 线圈绝缘等级 | n/a |
| 触头材料 | Silver Nickel (AgNi) | 外形尺寸 长x宽x高 | 29.00 x 12.70 x 15.70 [1.142 x .500 x .618] |
| 端接样式 | PC Pin | 典型触点布局 | 1A SPST-NO |
| 供应商器件封装 | Flux-Tight | ||
产品信息
| 备注 | Pinning 3.5 mm | 类型 | Relays |
| 产品特性 | Insulation - Class F, Sealed - Flux Protection | 功能 | Single Side Stable |
| 极性 | No | 继电器类型 | General Purpose |
| 卡标准 | General Purpose Relay | 接线图 | 1 Form A |
环境参数
| 动作时间 | 10ms | 工作温度 | -40°C ~ 85°C |
