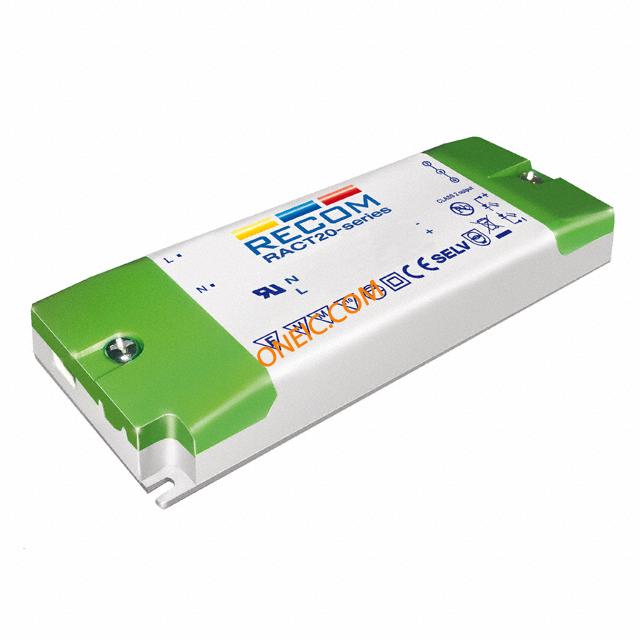

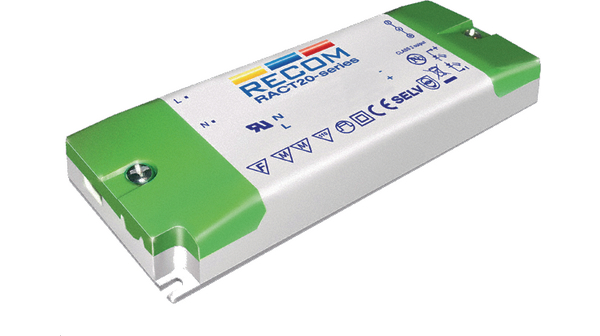

RACT20-350
| 制造商 | RECOM Power GmbH |
| 描述 | LED Power Supplies 180-264VIN 30-56VOUT LED DRIVER AC/DC LED SUPPLY CC AC/DC 30-56V 350MA LED Power Supply,LED Driver,350mA,20W LED Drivers Power Supplies 180-264VIN 30-56VOUT LED DRIVER AC/DC LED driver, RACT20-350, Recom Recom LED 驱动器 , 30 → 56V, 0.35A, 20W LEDDr Module 20W 350mA DIMM |
| 分类 |
商业参数
| 产品 | Linear Supplies | 商标名 | Lightline |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | CE, cULus |
电气参数
| 噪声 | 4 mV[pp] | 调光方式 | Triac |
| 隔离 | 3.75 kv[AC] | 操作方式 | Constant Current |
| 效率 | 82% | 最大功率 | 20W |
| 输出功率 | 20 W | 功率（瓦） | 20W |
| 额定功率 | 20 W | 工作模式 | Constant Current (CC) |
| 额定电压 | 180 → 264 V ac | 输出电流 | 350mA |
| 供电电压 | 180...264 VAC | 输出数量 | 1 |
| 隔离电压 | 3.75kV (3750V) | 最大额定电流 | 0.35A |
| 最小输入电压 | 30 ~ 56 V | 功率因数校正 | YES YES/NO |
| 直流输入电压（最大） | AC | 输入偏置电流（最大） | 200 mA |
| 输出电流/通道 | 350 mA | 保护电压（VP）（2416） | IP 20 |
机械参数
| 尺寸 | 50.2 x 137.5 x 23 mm | 深度 | 137.5 |
| 宽度 | 50.2 | 高度 | 23 |
| 重量 | 0.32 lb (145.15g) | 包装方式 | Bulk |
| 安装类型 | Chassis Mount | 尺寸/外形 | 5.41" L x 1.98" W x 0.91" H (137.5mm x 50.2mm x 23.0mm) |
| 端接样式 | 5.5mm Socket, Screw Terminal | ||
产品信息
| 类型 | Constant Current | 系列 | RACT20 |
| 产品特性 | OTP, SCP | 拓扑 | AC DC Converter |
| 保修 | 5 Years | ||
环境参数
| 额定等级 | IP20 | 密封等级 | 20 |
| 防护等级 | IP20 | 工作温度 | -30°C ~ 50°C |
