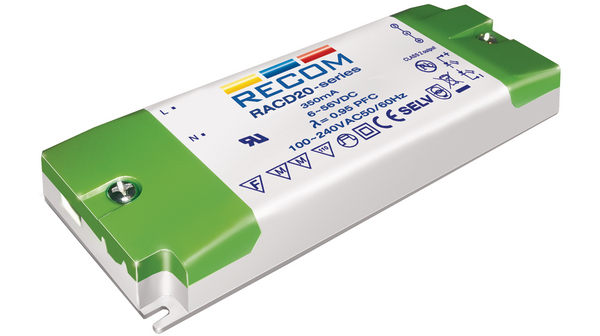

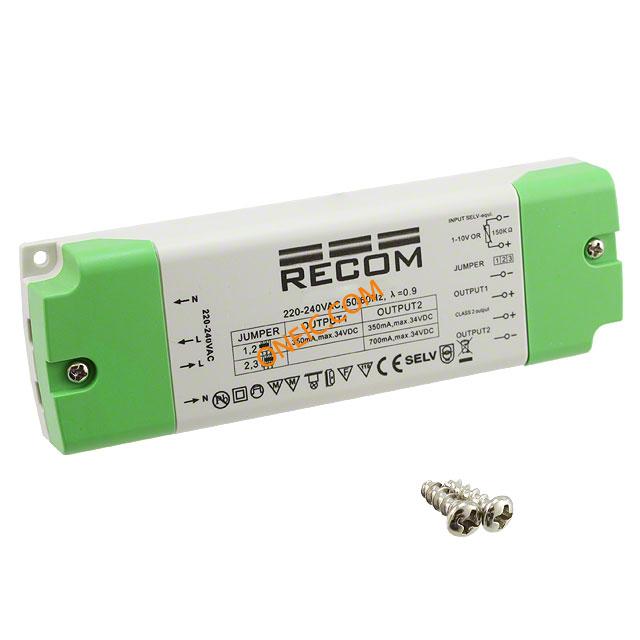

RACD20-350D
| 制造商 | RECOM Power GmbH |
| 描述 | LED Drivers Power Supplies CONV AC/DC 0.35AOUT 230VIN 2x(3-34)VOUT AC/DC-CONVERTER AC/DC CONVERTER 20W PFC 350MA LED SUPPLY CC AC/DC 3-34V 350MA LED Power Supply,LED Driver,350mA,20W LEDPowerSupply,LEDDriver,350mA,20W LED driver, RACD20-350D, Recom Recom LED 驱动器 , 3 → 34V, 0.05 → 0.35A, 20W LEDDr Module 20W 350mA PFC |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Linear Supplies |
| 商标名 | LIGHTLINE | 单位包装 | 1 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 无铅定义 | RoHS-conform | 认证机构 | CE, EN, SEMKO, UL |
电气参数
| 调光方式 | Analog | 隔离 | 3kv[AC] |
| 操作方式 | Constant Current | 效率 | 80% |
| 最大功率 | 20W | 输出功率 | 20 W |
| 功率（瓦） | 20W | 额定功率 | 20W |
| 工作模式 | Constant Current (CC) | 额定电压 | 230 V |
| 输出电流 | 350mA | 输出数量 | 2 |
| 隔离电压 | 3kV (3000V) | 最小输入电压 | 3 V to 34 V |
| 功率因数校正 | YESYES/NO | 直流输入电压（最大） | AC |
| 输入偏置电流（最大） | 260mA | 输出电流/通道 | 35 mA to 350 mA |
机械参数
| 宽度 | 50 | 重量 | 0.309 lb (140.16g) |
| 安装类型 | Screw | 总长度 | 155 |
| 尺寸/外形 | 6.10" L x 1.97" W x 0.87" H (155.0mm x 50.0mm x 22.0mm) | 端接样式 | Terminal Block |
| 外壳尺寸-插件 | 21 | ||
产品信息
| 类型 | ACDC | 系列 | RACD20 |
| 产品特性 | OCP, OTP, SCP | 拓扑 | AC DC Converter |
| 保修 | 5Years | 匹配码 | RACD20-350D |
| 标准交期 | 11 weeks | ||
环境参数
| 额定等级 | IP20 | 密封等级 | 20 |
| 工作温度 | 25° | ||
文档与媒体
相关型号

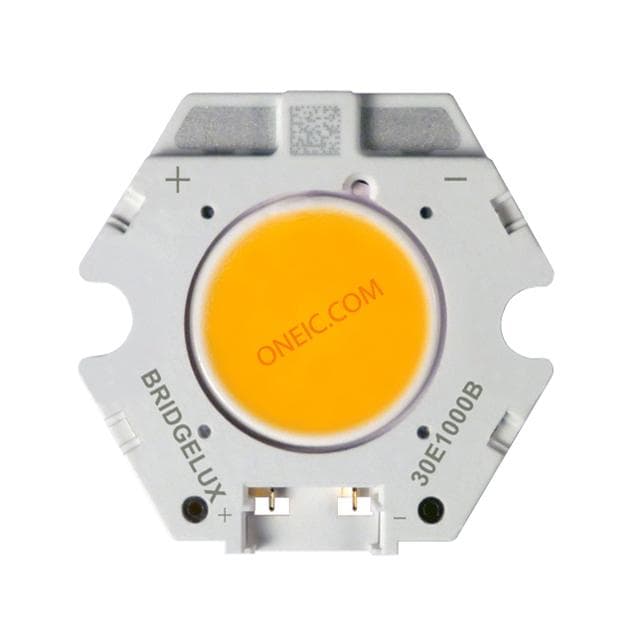

BXRC-27E1000-B-03
OSRAM Opto Semiconductors GmbH
LED MODULE COB VERO WHT LED, HB, VERO, WHITE, 1000LM, 2700K
BXRC-30E1000-B-03
OSRAM Opto Semiconductors GmbH
LED MODULE COB VERO WHT LED, HB, VERO, WHITE, 1000LM, 3000K
BXRC-35E1000-B-03
OSRAM Opto Semiconductors GmbH
LED MODULE COB VERO WHT LED, HB, VERO, WHITE, 1000LM, 3500K
BXRC-40E1000-B-03
OSRAM Opto Semiconductors GmbH
LED MODULE COB VERO WHT LED, HB, VERO, WHITE, 1000LM, 4000K
BXRC-50C1000-B-04
OSRAM Opto Semiconductors GmbH
LED MODULE COB VERO WHT LED, HB, VERO, WHITE, 1000LM, 5000K
BXRC-30G1000-B-03
OSRAM Opto Semiconductors GmbH
LED MODULE COB VERO WHT LED, HB, VERO, WHITE, 1000LM, 3000K
BXRC-30H1000-B-03
OSRAM Opto Semiconductors GmbH
LED MODULE COB VERO WHT LED, HB, VERO, WHITE, 1000LM, 3000K

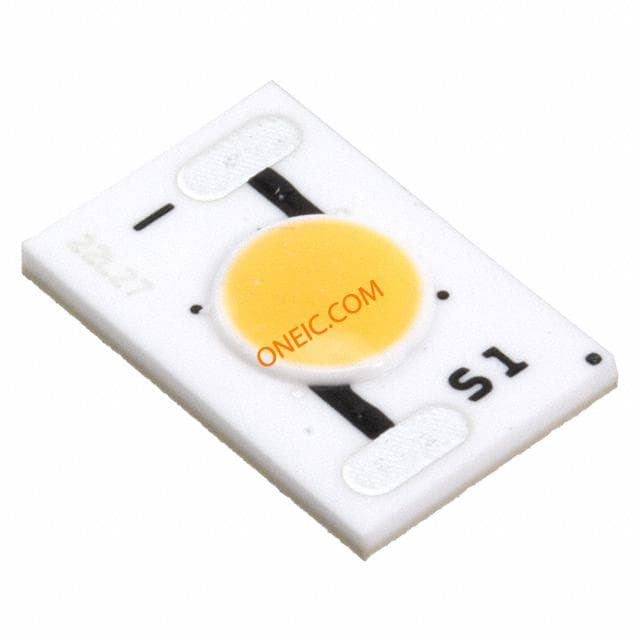

GW5SMB40P0C
