点击放大查看

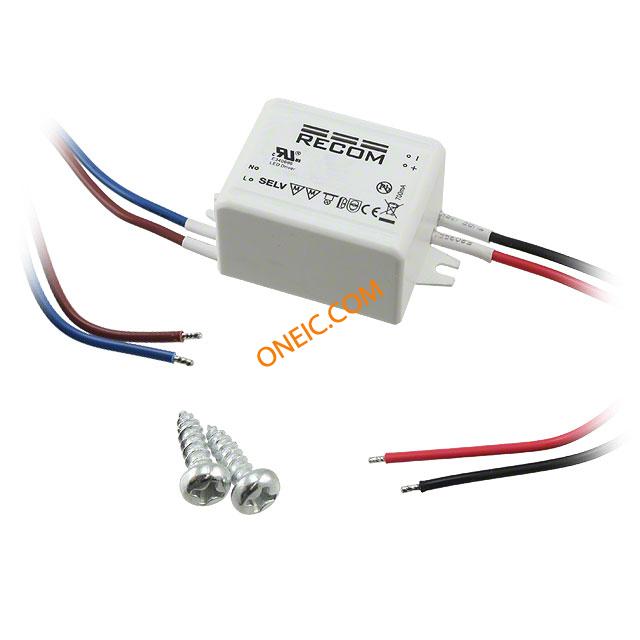

RACD03-350
| 制造商 | RECOM Power GmbH |
| 描述 | LED Drivers Power Supplies CONV AC/DC0.35AOUT 110-240VIN 3-12VOUT AC/DC-CONVERTER AC/DC CONVERTER 350mA 3W LED SUPPLY CC AC/DC 3-15V 350MA LED Power Supply,LED Driver,350mA,3W POWER SUPPLY; AC; LED DRIVER; REMOTE; 3W; 3-12VDC; INPUT 90-264VAC LED driver, RACD03-350, Recom Recom LED 驱动器 , 2.5 → 15V, 0 → 0.35A, 3W LEDDr Module AC/DC 350mA 3W |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Switching Supplies |
| 商标名 | LIGHTLINE | 单位包装 | 10 |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 无铅定义 | RoHS-conform | 认证机构 | CE, cULus |
电气参数
| 输出端 | 15VDC@0.35A | 隔离 | 3kv[AC] |
| 操作方式 | Constant Current | 效率 | 55% |
| 输出类型 | 150 | 最大功率 | 3W |
| 输出功率 | 3 W | 功率（瓦） | 3W |
| 额定功率 | 3W | 工作模式 | Constant Current (CC) |
| 额定输出功率 | 3 W | 额定电压 | 110 VAC to 240 VAC |
| 输出电流 | 350mA | 输出数量 | 1 |
| 隔离电压 | 3kV (3000V) | 最小输入电压 | 3 V to 12 V |
| 功率因数校正 | NoYES/NO | 直流输入电压（最大） | AC, DC |
| 输入偏置电流（最大） | 38mA | 输出电流/通道 | 350 mA |
机械参数
| 宽度 | 30 | 重量 | 0.1 lb (45.36g) |
| 安装类型 | Screw | 安装样式 | Chassis |
| 总长度 | 46 | 面板安装类型 | Enclosed |
| 主要材料 | AC-DC | 尺寸/外形 | 46 mm L x 30 mm W x 23 mm H |
| 端接样式 | Wire Leads | 位数 | 4 |
| 外壳尺寸-插件 | 23 | ||
产品信息
| 类型 | ACDC | 系列 | RACD03 |
| 产品特性 | OCP, OTP, OVP, SCP | 拓扑 | AC DC Converter |
| 保修 | 3Years | 匹配码 | RACD03-350 |
| 制造商全称 | RACD03 Series | 配置 | Encapsulated |
| 标准交期 | 11 weeks | 印刷电路板数量 | 4 |
环境参数
| 额定等级 | IP66 | 密封等级 | 66 |
| 工作温度 | -20 +85° | ||
