点击放大查看

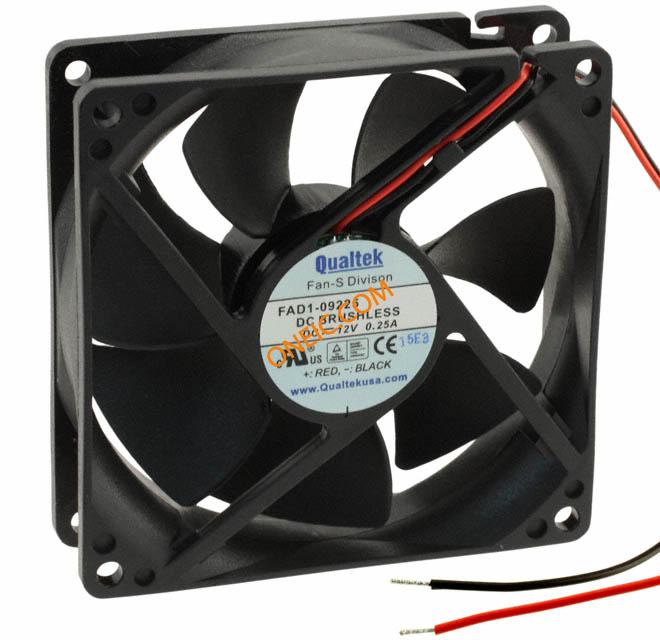

FAD1-09225CBLW11

制造商	Qualtek Electronics Corp.
描述	FAN 92.5X25MM BALL 12VDC WIRE Fans DC FAN 92x25mm Ball 12VDC WIRE
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	产品类别	Fans
标准包装数量	180

合规参数

RoHS

RoHS Compliant

电气参数

噪声	29.2 dB(A)	转速	2100 RPM
功率（瓦）	1.20W	额定功率	1.2 W
额定电压	12VDC	供电电压	12 V
最大额定电流	0.100A

机械参数

RPM	2100 RPM	重量	0.203 lb (92.08g)
风量	40.7 CFM (1.15m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Ball
静压	0.081 in H2O (20.1 Pa)	壳体材料	Plastic
刀片材料	Plastic	框架材料	Plastic
尺寸/外形	Square - 92.5mm L x 92.5mm H x 25mm W	端接样式	Wire Leads

产品信息

类型

Axial Fans

功能

环境参数

工作温度

14 ~ 158°F (-10 ~ 70°C)

文档与媒体

PDF 文档

FAD1-09225 Series

PDF 文档

FAD1-09225-39531.pdf
