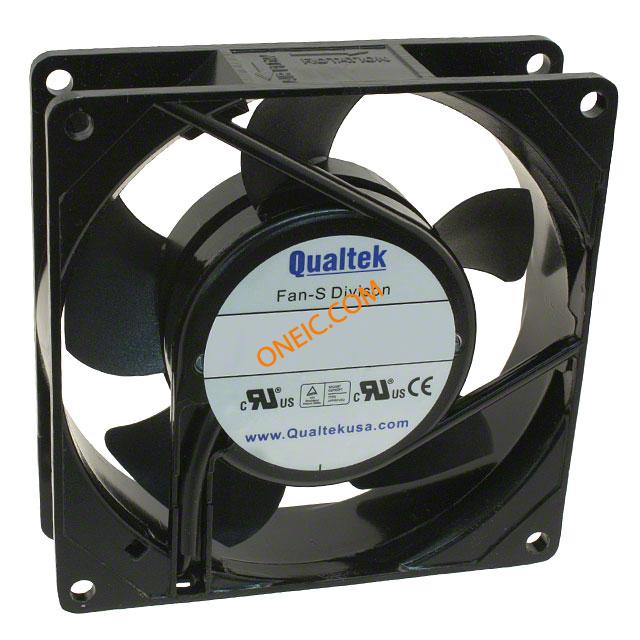

点击放大查看

FAA1-09225NBMT31

制造商	Qualtek Electronics Corp.
描述	FAN 92X25.6MM BALL 115VAC TERM Fans AC FAN 92x25mm Ball 115VAC TERM Fan;AC;115V;92x92x25mm;Sq;25/30.5CFM;7.9/6.4W;21.1/30.1dBA;Terminals
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	产品类别	Fans
标准包装数量	80

合规参数

RoHS

RoHS Compliant

电气参数

噪声	26.8 dB(A)	转速	1800 RPM, 2200 RPM
频率	50/60Hz	功率（瓦）	5.0W
额定功率	7.9 W, 6.4 W	额定电压	115VAC
供电电压	115 V	最大额定电流	0.130A

机械参数

RPM	2200 RPM	尺寸	3.6x1(92x25)In.(mm)
重量	0.507 lb (229.97g)	风量	30.5 CFM (0.864m³/min)
风扇类型	Tubeaxial	材料（通用）	AluminumAlloy
旋转范围	CW	端接方式	2 Terminals
轴承类型	Ball	静压	0.089 in H2O (22.2 Pa)
壳体材料	Aluminum Alloy	刀片材料	Plastic
框架材料	Aluminum	主要材料	Fans
尺寸/外形	Square - 92mm L x 92mm H x 25mm W	端接样式	Terminals
风扇附件类型	3.6x1(92x25)In.(mm)	总体尺寸	3.6x3.6x1In.

产品信息

类型	Axial Fans	功能	AC
方向	ExhaustoverStruts	开关类型	AC
制造商全称	FAA1-09225Series	配置	Square

环境参数

工作温度	14 ~ 158°F (-10 ~ 70°C)	自然散热热阻	25/30.5CFM
结工作温度	70°C

文档与媒体

PDF 文档

FAA1-09225 Series

PDF 文档

FAA1-09225-29113.pdf
