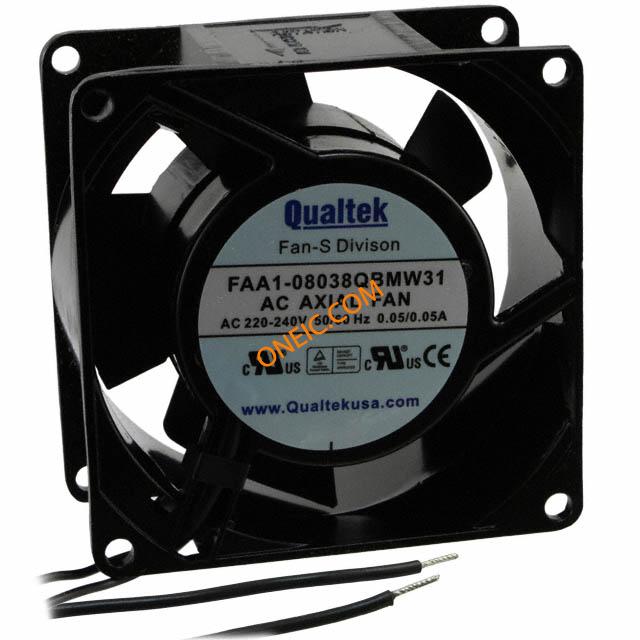

点击放大查看
FAA1-08038QBMW31
| 制造商 | Qualtek Electronics Corp. |
| 描述 | FAN 80X38MM BALL 230VAC WIRE Fans AC FAN 80x38mm Ball 230VAC WIRE |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 60 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 26.2 dB(A) | 转速 | 2300 RPM, 2400 RPM |
| 功率（瓦） | 5.0W | 额定功率 | 6 W, 5 W |
| 额定电压 | 230VAC | 供电电压 | 230 V |
| 最大额定电流 | 0.030A | ||
机械参数
| RPM | 2400 RPM | 重量 | 0.706 lb (320.24g) |
| 风量 | 24.0 CFM (0.680m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.110 in H2O (27.4 Pa) | 壳体材料 | Aluminum Alloy |
| 刀片材料 | Plastic | 框架材料 | Aluminum |
| 尺寸/外形 | Square - 80mm L x 80mm H x 38mm W | 端接样式 | Wire Leads |
产品信息
| 类型 | Axial Fans | 功能 | AC |
环境参数
| 工作温度 | 14 ~ 158°F (-10 ~ 70°C) | ||
