点击放大查看

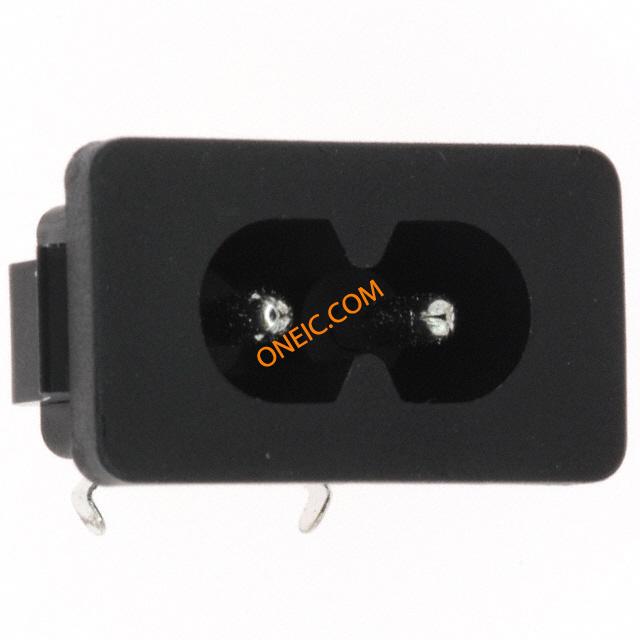

771W-X2/02
| 制造商 | |
| 描述 | ACパワーエントリモジュール SNAP-IN PCB PINS CONN RECEPT SNAP-IN/PCB PINS AC Power Entry Modules SNAP-IN PCB PINS Conn Power M 2 POS 8.6mm ST Thru-Hole Inlet,Power;SnapInMount;250VAC;2.5A;100Megohms@500VDC AC Receptacles IEC 320 Power Inlets Low Current Inlet IEC 320 - C8 Max Rating: 2.5A/250VAC Description: Snap-In Mount Terminals: PCB Mount Universal snap-in feature to fit 0.6 mm - 1.5 mm panel thickness |
| 分类 |
商业参数
| 产品 | Outlets | 交货时间 | 98 Days |
| 其他名称 | Q277 | 子类别 | Connector Power |
| 产品类别 | AC Power Entry Modules | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | UL,CSA,VDE,SEMKO,DEMKO,NEMKOandSETI |
| 认证机构 | UL,CSA,VDE | ||
电气参数
| 电流 | 2.5A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V |
| 极数 | 2 | 开关功能 | Not Switched |
| 介电强度 | 2000VACfor1min | 最大额定电流 | 2.5 A |
| 绝缘电阻 | 100Megohms@500VDC | ||
机械参数
| 颜色 | Black | 包装方式 | Bag |
| 端接方式 | SolderTab | 安装类型 | Panel Mount, Snap-In; Through Hole, Right Angle |
| 连接器类型 | Receptacle, Male Pins | 安装样式 | Snap In |
| 连接器样式 | IEC 320-C8 | 保险丝座类型 | Drawer Not Required |
| 壳体材料 | Thermoplastic | 主要材料 | AC |
| 端接样式 | Solder | 触点数 | 2 |
| 位数 | 2 | ||
产品信息
| 类型 | Inlet | 带保险丝 | No |
| 产品特性 | LowCurrent | 制造商全称 | 771WSeries |
文档与媒体
相关型号
223082-01
Qualtek
AC Power Cords SPT-2 PWR CORD 125V 7A BLACK CORD 18AWG 2COND POLARIZED 6' Test Equipment Power Cords SPT-2 PWR CORD 125V 7A BLACK

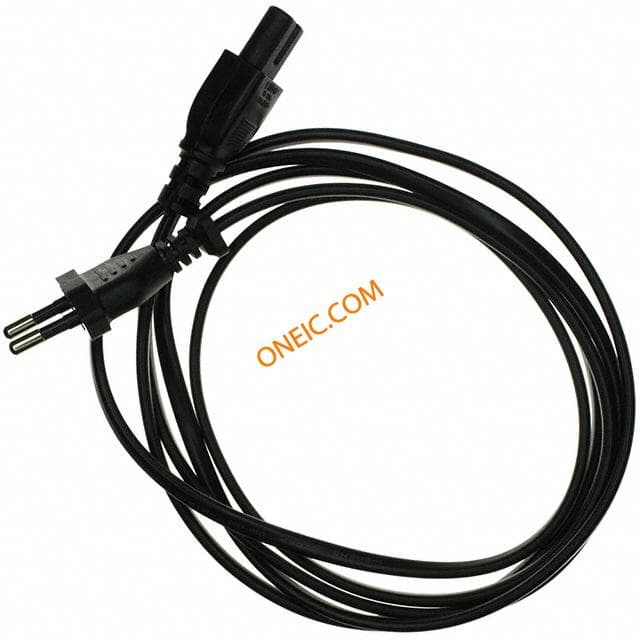

360006-E01
