点击放大查看

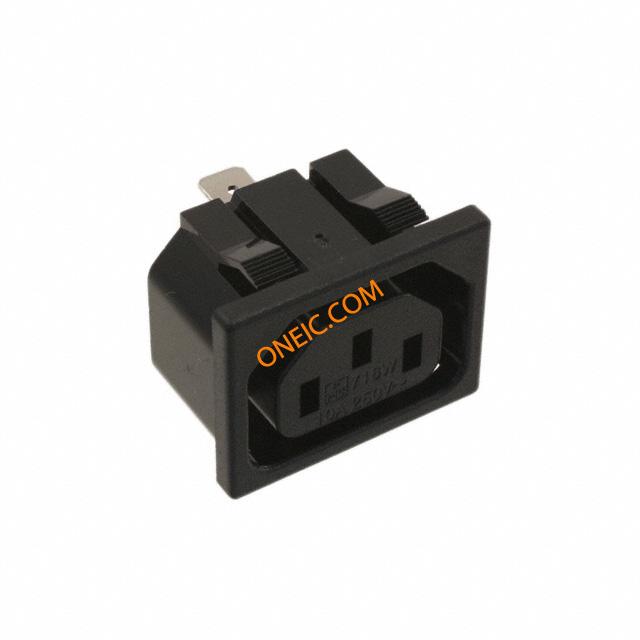

716W-X2/03

制造商	Qualtek Electronics Corp.
描述	ACパワーエントリモジュール SNAP-IN F/M .250 O.D CONN AC RCPT .8MM SNAP/.250 FO Outlet; Universal Snap-In Mount; 10/15 A; 250 VAC; gt 100 Megohms @ 500 VDC AC Power Entry Modules SNAP-IN F/M .250 O.D Conn Power RCP 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONNECTOR, POWER ENTRY, FEMALE, 15A Outlet;UniversalSnap-InMount;10/15A;250VAC;gt100Megohms@500VDC AC Receptacles IEC 320 Power Outlets AC Power Outlet IEC 60320 - C13 Max Rating: UL & CSA 15A/250VAC - VDE 10A/250VAC Description: Snap-In Mount Terminals: .250 Q.D. Universal snap-in feature to fit 0.8 mm - 1.5 mm panel thickness 3 Position 250 V 10 A Male Pins AC Receptacle Right Angle Connector
分类	连接器解决方案电源输入连接器电源输入连接器

对参数有疑问？问 AI 助手

商业参数

产品	Outlets	交货时间	98 Days
子类别	Connector Power	产品类别	AC Power Entry Modules
标准包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

电流	15A	电压	250V
滤波器类型	No	额定电压	250 VAC
开关功能	Not Switched	最大额定电流	15 A

机械参数

重量	0.014	包装方式	Bag
交流输出口	:1	安装类型	Panel Mount, Snap-In
连接器类型	Receptacle, Female Sockets	接触镀层	Nickel
安装样式	Snap In	连接器样式	IEC 320-C13
保险丝座类型	Drawer Not Required	触头材料	:Copper
壳体材料	Thermoplastic	端接样式	Quick Connect - 0.250" (6.3mm)
接触件端接	:Quick Connect	位数	3
第一连接器安装类型	:Panel

产品信息

带保险丝	No	连接器性别	:Receptacle
系列	:-

文档与媒体

PDF 文档

IEC Connector Designations

PDF 文档

716wx203.pdf

PDF 文档

716W-X2/03

PDF 文档

1780635.pdf
