点击放大查看

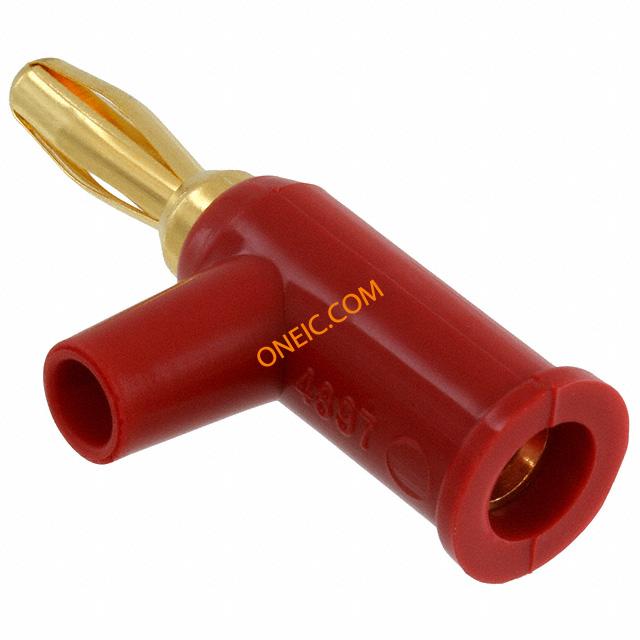

4897-2
| 制造商 | |
| 描述 | Test Plugs & Test Jacks BANANA PLUG Conn Banana PL 1 POS Screw ST Cable Mount 1 Port BANANA PLUG W/SHIELD GOLD RED BANANA PLUG, 15A, SCREW, RED BananaJack;BananaPlug;15A;Red;BerylliumCopper;5000Vrms(Max.) |
| 分类 |
商业参数
| 零件号别名 | 1914879 | 产品类别 | Test Plugs & Test Jacks |
| 标准包装数量 | 5 | 工厂包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 额定电压 | 5 kV | 最大额定电流 | 15 A |
机械参数
| 颜色 | Red | 宽度 | 0.44in. |
| 高度 | 1.55in. | 长度 | 1.55 in |
| 重量 | 0.005 | 直径 | 0.166in. |
| 包装方式 | 1 per Pkg | 绝缘类型 | Non-Mating End Insulated |
| 导线线规 | 18-22 AWG | 端接方式 | Screw |
| 基体材料 | Polypropylene (PP) | 外壳颜色 | Red |
| 安装类型 | Cable Mount | 接触镀层 | Gold |
| 安装样式 | Panel | 本体材料 | BerylliumCopper |
| 触头材料 | Beryllium Copper | 壳体材料 | Acrylonitrile Butadiene Styrene |
| 总长度 | 39.36 | 框架材料 | BerylliumCopper |
| 主要材料 | Banana | 连接器颜色 | :Red |
| 触点数 | 1 | 接触件端接 | :Screw |
| 绝缘材料 - 类型 | Acrylonitrile Butadiene Styrene (ABS) | 端接长度 | 0.55in. |
| 绝缘材料 - 材质 | ABS(Model4899PolyphenyleneSulfide) | 插头/配合插头直径（类型） | Standard |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Banana | 连接器性别 | PL |
| 系列 | :4897 | 产品特性 | Set Screw, Safety Collar |
| 制造商全称 | 4897Series | 设备类型 | Banana Plugs |
| 端口数 | 1 | ||
环境参数
| 工作温度 | 50°C | 结工作温度 | +122°F |
