3248115

制造商	Phoenix Contact GmbH & Co. KG
描述	DIN Rail Terminal Blocks Mini Feed-through 3.5mm Width,26-14AWG FEED-THROUGH TERMINAL BLOCK Phoenix Contact MPT 系列灰色馈通端子块 , 17.5A, 500 V
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

商标名

CLIPLINE MPT

标准包装数量

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94 V-0

电气参数

电流 - UL	15A	UL电压	300V
电流 - IEC	17.5A	IEC电压	500V
额定电压	500 V	最大额定电流	17.5 A

机械参数

颜色	Gray	宽度	3.5 mm
高度	28.1 mm	长度	33.55 mm
导线线规	26	高度（最大）	1.106" (28.09mm)
外壳颜色	Gray	安装类型	DIN Rail
电缆材料	1.5mm²	安装样式	DIN Rail
排数	1	壳体材料	Polyamide (PA)
剥线长度（范围）	8mm	端子宽度	3.5mm
端接排数	推入式	端接样式	Screw
触点数	2	位数	2
绝缘材料 - 材质	Polyamide (PA), Nylon	线规或范围 - AWG	26-14
线规或范围 - mm²	14

产品信息

类型	Mini Feed-Through Terminal Block	系列	MPT
叠层数	单层	层数	1
连接方式	Push-In

文档与媒体

PDF 文档

3248115

相关型号

1204096

Phoenix Contact

Terminal Block Tools & Accessories NS 15 PERFORATED WH DIN Rail, Material Steel, Perforated, Height 5.5mm, Width 15mm DIN RAIL 15X5MM SLOTTED STEEL 2M DINRail;NS15Perforated;1=2M

¥37.0600

详情

0829392

Phoenix Contact

Terminal Block Tools & Accessories ZBF 3,5:UNBEDRUCKT MARKER STRIP FLAT STRIP WHITE Cable Accessories Zack Strip White Terminal Marker

¥7.0720

详情

1413227

Phoenix Contact

Terminal Block Tools & Accessories ATP-MBK GRAY PLATE Partition Plate, Length 42.5mm, Width 2.5mm, HeIGHt 41mm, Color Gray TERM BLK PARTITION PLATE 2.5MM Partition plate, Length: 42.5 mm, Width: 2.5 mm, Height: 41 mm, Color: gray PartitionPlate;TermBlk;Gray;42.5mmL;2.5mmW;41mmH Phoenix Contact ATP-MBK 系列隔板

¥7.6160

详情

0201744

Phoenix Contact

Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug

¥17.4760

详情

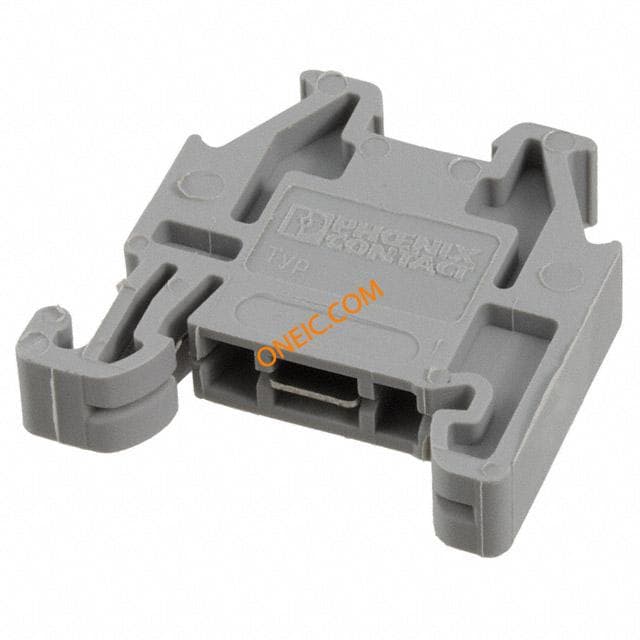

3022263
