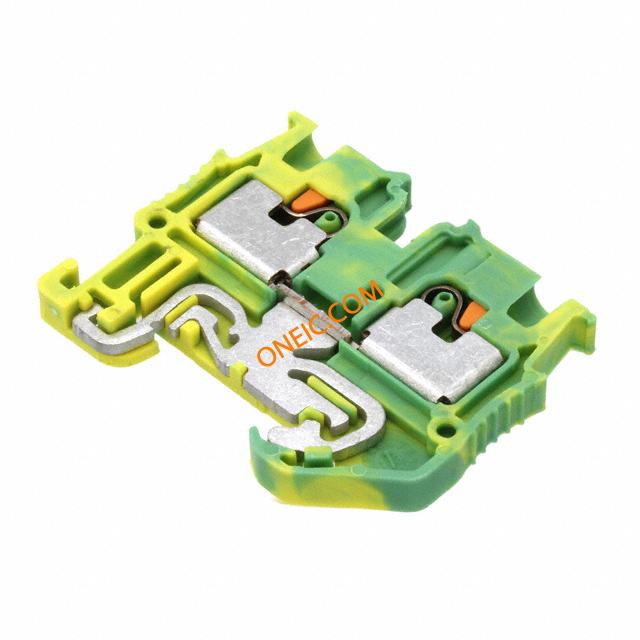

3248110
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks Mini Ground 3.5mm Width,26-14AWG MINI GROUND TERMINAL BLOCK Phoenix Contact MPT 系列 绿色/黄色 接地块 |
| 分类 |
商业参数
| 商标名 | CLIPLINE MPT | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Green, Yellow | 宽度 | 3.5 mm |
| 高度 | 28.1 mm | 长度 | 33.55 mm |
| 导线线规 | 26 | 电缆材料 | 1.5mm² |
| 安装样式 | DIN Rail | 排数 | 1 |
| 壳体材料 | Polyamide (PA) | 剥线长度（范围） | 8mm |
| 端子宽度 | 3.5mm | 端接排数 | 推入式 |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 26-14 | 线规或范围 - mm² | 14 |
产品信息
| 类型 | Mini Ground Terminal Block | 系列 | MPT |
| 叠层数 | 单层 | 层数 | 1 |
| 连接方式 | Push-In | ||
