点击放大查看

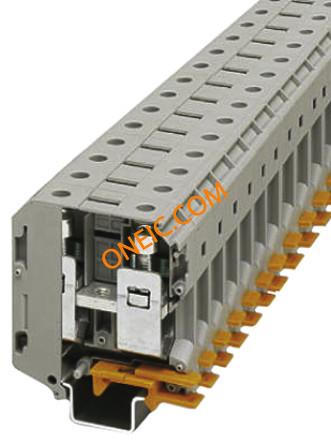

3213140
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Conn Feed-Through Modular Terminal Blocks 2 POS Screw CONN TERM BLOCK TB,Screw connection,Width:20.3mm,grey DIN Rail Terminal Blocks UKH 70 TerminalBlock;Feed-through;ScrewConn.;1Pos;Gray Phoenix Contact UKH Clipline 系列 灰色 馈通端子块 , 192A, 1000 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 其他名称 | UKH 70 |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 192A | UL电压 | 1000V |
| 电流 - IEC | 192A | IEC电压 | 1000V |
| 额定电压 | 1000 V | 最大额定电流 | 192A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 20.3 |
| 宽度 | 20.3 mm | 高度 | 78.3 mm |
| 长度 | 70.5 mm | 导线线规 | 4 → 3/0 AWG |
| 端接方式 | Screw | 安装类型 | NS 32, NS 35/7.5, NS 35/15 |
| 壳体材料 | Polyamide | 总长度 | 70.5 |
| 剥线长度（范围） | 24mm | 端子宽度 | 20.3mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 连接器颜色 | Grey | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 3/0-6 AWG | 线规或范围 - mm² | 16-95mm² |
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 系列 | UKH |
| 叠层数 | 单层 | 层数 | 1 |
| 连接方式 | Screw | ||
