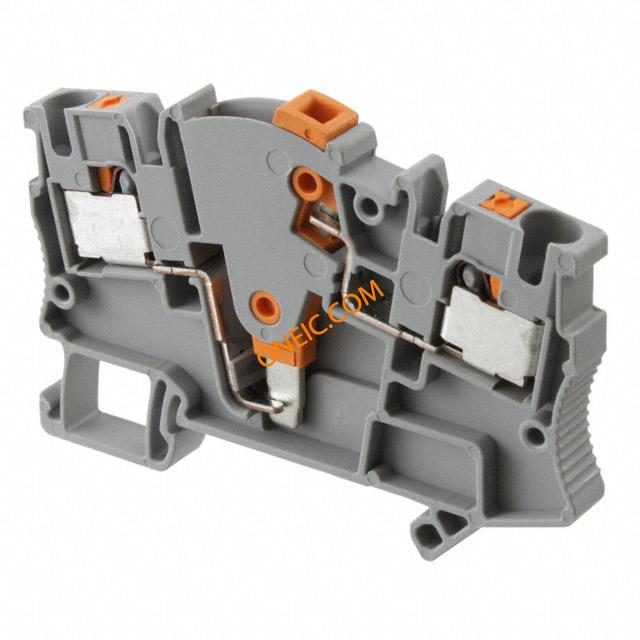

3212139
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | CONN TERM BLK DISCONNECT 6.2MM DIN Rail Terminal Blocks PTME 4 Conn Disconnect Terminal Blocks 2 POS 26A PTME4 Phoenix Contact PTME Clipline 系列 灰色 断开接线排 , 24A, 500 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 26A | UL电压 | 300V |
| 电流 - IEC | 24A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 24 A |
机械参数
| 颜色 | Gray | 宽度 | 6.2 mm |
| 高度 | 49.5 mm, 57 mm | 长度 | 70.5 mm |
| 导线线规 | 24 | 安装类型 | NS 35/7.5, NS 35/15 |
| 排数 | 1 | 壳体材料 | Polyamide (PA) |
| 剥线长度（范围） | 12mm | 端子宽度 | 6.2mm |
| 端接排数 | 推入式 | 端接样式 | Push In |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 10-24 AWG |
| 线规或范围 - mm² | 0.2-6mm² | ||
产品信息
| 类型 | Disconnect | 系列 | PT |
| 断开类型 | Switch, Lever | 叠层数 | 单层 |
| 层数 | 1 | ||
环境参数
| 工作温度 | +130°C | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0810588
Phoenix Contact
Terminal Block Tools & Accessories GBS 5-25X12 SNAP ON MARKER CARRIER Group Marker Label GBS 5-25x12 Connector Accessories Group Marker Label Polyamide Gray GROUPMARKERLABEL Phoenix Contact GBS 系列 端子标记
0828746
Phoenix Contact
Wire Identification UCT-TMF 6 TERM BLOCK MARKER 6.2MM WHITE Labels Marker Label Polycarbonate White 5.6x5mm Markerforterminalblocks-UCT-TMF6
0824992
Phoenix Contact
Terminal Block Tools & Accessories ZB 6 CUS TERM BLOCK MARKING LABEL Terminal Block Tools & Accessories ZB 6 CUS 1 strip is 1 piece TERMINALBLOCKMARKING
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
3002885
Phoenix Contact
Terminal Block Tools & Accessories ZFK 4-ISH 0,5 Connector Accessories Insulating Stop Sleeve Gray INSULATING SLEEVE COLOR: GRAY Insulating sleeve ISH 4/0,5 ZFK4-ISH0,5
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
0808710
Phoenix Contact
Terminal Block Tools & Accessories ZBF 6: UNBEDRUCKT MARKER STRIP 10 SECT Zack Strip, Flat, Unprinted 10-Section, For Individual Labeling With M-Pen Or Zbf-T, Sufficient For 100 Terminal Blocks, Color White 10 SECTION ZACK MARKER STRIP Phoenix Contact 0808710 Marker Strip Terminal Block, Series: ZBF ZACKSTRIP,FLAT,UNPRINTED Phoenix Contact ZBF 系列 标记条
3030349
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-6 5 POS BRIDGE Connector Accessories Plug-in Bridge For Cross-Connections In The Terminal Center BRIDGE TERM BLOCK 5POS Phoenix Contact 3030349 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 5-6 Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 5 极跳片
3030336
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-6 2P PLUG-IN BRIDGE Conn Jumper PL 2 POS ST BRIDGE TERM BLOCK 2POS Phoenix Contact 3030336 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. FBS 2-6
3030271
Phoenix Contact
Terminal Block Tools & Accessories FBS 10-6 BRIDGE Conn Jumper M 10 POS Solder ST Thru-Hole BRIDGE TERM BLOCK 10POS Busbar Plug In Bridge Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:10; Width:6mm 10 way x 6mm plug in bridge,red
0801704
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35X7.5MM UNSLOT ALUM 2M Din Rail, Material Aluminum, Unperforated, Height 7.5mm, Width 35mm, Length 2 M DINRail,Aluminum,unperforated,height7.5mm,width35mm,2meterslength
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM
0828736
Phoenix Contact
Terminal Block Tools & Accessories UCT-TM 6 TERM BLOCK MARKER 6.2MM WHITE Connector Accessories Terminal Block Marker Polycarbonate White UCT-TM6
1201756
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN rail, Deep Drawn, High Profile DIN RAIL 35X15MM UNSLOT ALUM 2M NS35/15-ALUNPERF2000MM(Suppliedin2meterlengthspriceper2meters)
3034374
PHOENIX CONTACT
Connector Accessories Cover Profile Carrier COVER PROFILE CARRIER MOUNT APH-ME
3035982
PHOENIX CONTACT
TEST ADAPTER FOR 4 MM AFETY TEST PLUGS LATCHES INTO THE BRIDGE ADAPTER TEST 4MM GRAY Terminal Block Tools & Accessories PAI-4-FIX-5/6 GY PAI-4-FIX-5/6GY Phoenix Contact

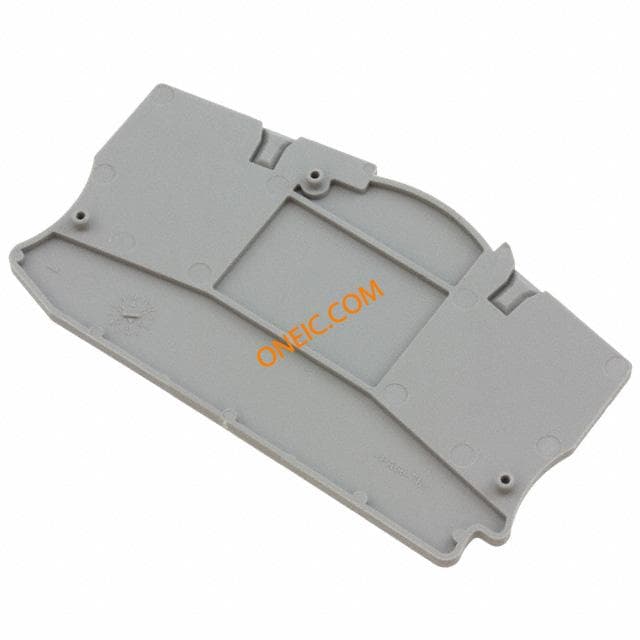

3212167
