3210884
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PTTB 2,5/2P BU Conn Feed-Through Modular Terminal Blocks F 4 POS 22A CONN TERM BLOCK FEED THRU 5.2MM PushInTechnologyFeedThroughModularTerminalBlock26-12AWG |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 22A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 22 A |
| 最小输入电压 | 500V | ||
机械参数
| 深度 | 5.2 | 高度 | 55 |
| 长度 | 2.815" (71.50mm) | 导线线规 | 12 |
| 高度（最大） | 2.165" (55.00mm) | 外壳颜色 | Blue |
| 安装类型 | DIN Rail | 接触镀层 | Tin |
| 安装样式 | DIN Rail | 排数 | 4 |
| 壳体材料 | Polyamide | 总长度 | 71.5 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.2mm |
| 端接样式 | Plug Receptacles, Push In, Spring | 触点数 | 4 |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-24 AWG | 线规或范围 - mm² | 0.14-4mm² |
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | PT | 层数 | 2 |
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
3002856
Phoenix Contact
Terminal Block Tools & Accessories ISH 2,5/0.5 STOP SLEEVE, GRAY Insulation Stop Sleeve, Color Gray INSTULATION STOP SLEEVE Phoenix Contact 3002856 Insulating Sleeve Terminal Block, Series: ISH ISH2,5/0.5
3030226
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-5 20 P0S BRIDGE Conn Jumper PL 20 POS ST CROSS CONN BRIDGE TRM BLK 20POS Phoenix Contact 3030226 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 20-5 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 20 极跳片

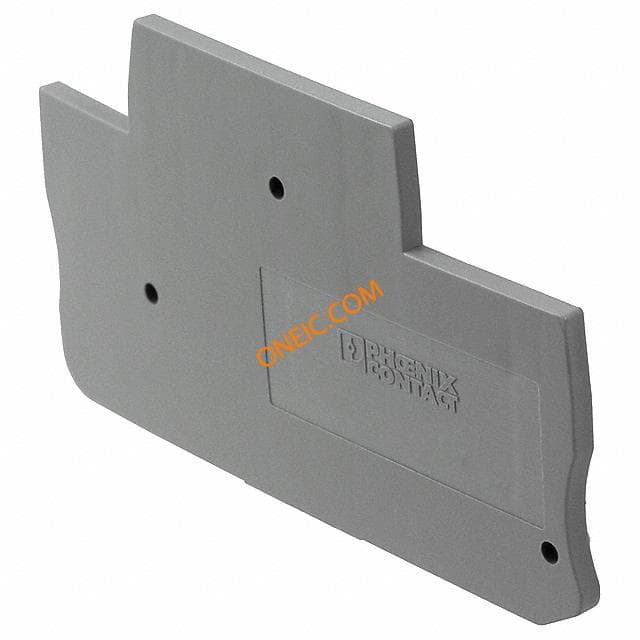

3211634
