点击放大查看

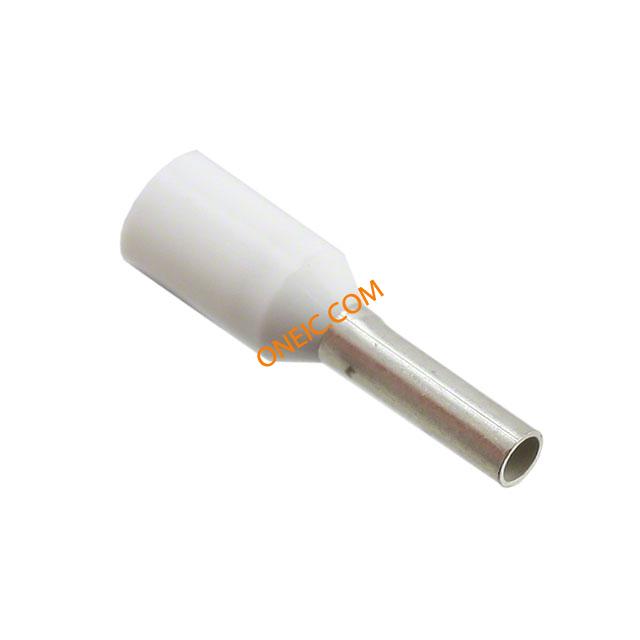

3201314

制造商	Phoenix Contact GmbH & Co. KG
描述	Terminals .75mm WH 20AWG Ferrules Terminal F 12mm 3.3mm CONN FERRULE 18AWG WHITE Ferrules With Plastic Sleeve, Color Range 2 FERRULE,LENGTH:12MM,COLOR:WHITE
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

产品	Ferrules	交货时间	28 Days
子类别	Connector Terminals	产品类别	Terminals
标准包装数量	100	工厂包装数量	100

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	18 AWG (0.75mm²)	颜色	White
深度	3.3	长度	12 mm
重量	0.002716 oz	绝缘类型	Insulated
导线线规	75-6	引脚长度（针脚）	6.00mm
基体材料	Electrolytic Copper	螺柱/焊片尺寸	3/4 in
接触镀层	E-Copper	总长度	12.00mm
绝缘材料 - 类型	Plastic

产品信息

类型	Ferrules Terminal	样式	DIN
连接器性别	Female	系列	320
行业别名	AI 0, 75- 6 WH
