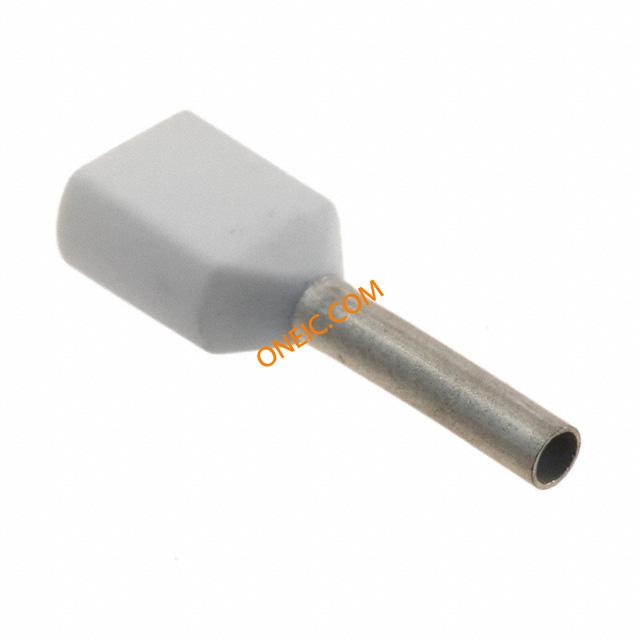

点击放大查看
3200933
| 制造商 | |
| 描述 | Terminals AI-TWIN 2X 0.5-8 WH Ferrules Terminal F 15mm 5.2mm CONN FERRULE 2WIRE 20AWG WHITE Ferruleswithplasticsleeve,colorrangeinacc.withDIN46228-4 Phoenix Contact AI - Twin 2X 0.5 系列 白色 绝缘 压接靴带套圈 , 8mm 脚长, 1.5mm 脚直径 |
| 分类 |
商业参数
| 产品 | Ferrules | 交货时间 | 20 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | Two x 20 AWG (0.50mm²) | 颜色 | White |
| 深度 | 5.2 | 长度 | 15 mm |
| 重量 | 0.004162 oz | 绝缘类型 | Insulated |
| 导线线规 | 20 | 引脚长度（针脚） | 8.00mm |
| 引脚直径 | 1.5mm | 基体材料 | Electrolytic Copper |
| 行程角度 | Straight | 接触镀层 | Tin |
| 触头材料 | E-CU | 总长度 | 15.00mm |
| 包装数量 | 100 | 主要材料 | Insulated |
| 绝缘材料 - 类型 | Plastic | 法兰下方引脚尺寸 | 8mm |
产品信息
| 类型 | Ferrules Terminal | 样式 | DIN |
| 连接器性别 | Female | 系列 | 320 |
| 覆盖范围 | 无覆盖 | CAD图纸 | 3D CAD 模型 |
| 制造商全称 | AI-TwinSeries | 线路数量 | 1 |
| 行业别名 | AI-TWIN 2X 0, 5 - 8 WH | 基础产品编号 | AI-TWIN2X0,5-8WH |
