点击放大查看

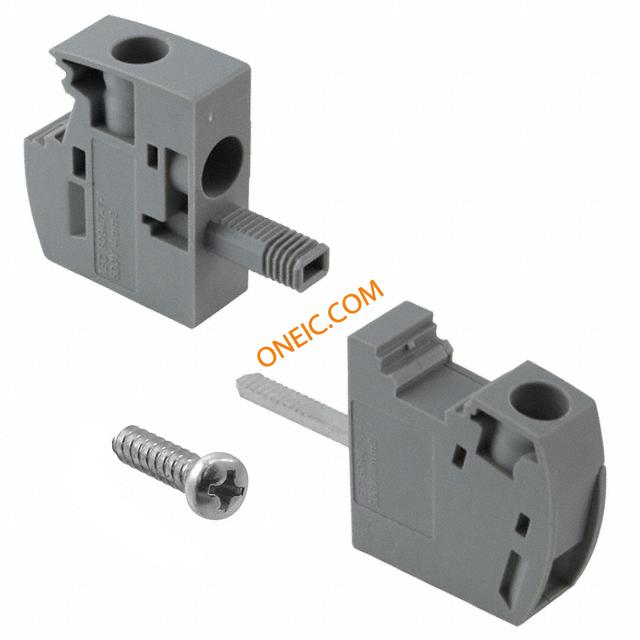

3073306
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Fixed Terminal Blocks UW 4 Conn Feed-Thru F 2 POS Screw Wall Mount 41A FEED TRHOUGH TERM BLOCK UW4 |
| 分类 |
商业参数
| 产品 | Fixed Terminal Blocks | 商标名 | COMBICON Power |
| 产品类别 | Fixed Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 额定电压 | 500 V | 最大额定电流 | 41 A |
| 最小输入电压 | 500V | ||
机械参数
| 颜色 | Gray | 宽度 | 0.319" (8.10mm) |
| 高度 | 23.5 mm | 长度 | 44.4 mm |
| 导线线规 | 10-24 AWG | 端接方式 | Screw |
| 安装类型 | Wall Mount | 安装样式 | Through Hole |
| 排数 | 2 | 面板厚度 | 0.039 ~ 0.158" (1.0 ~ 4.0mm) |
| 壳体材料 | Polyamide | 总长度 | 8.1 |
| 面板安装类型 | 2 Piece | 端接样式 | Screw |
| 触点数 | 2 | 线规或范围 - mm² | 10 |
| 后面板接线方式 | Bolt/Screw Clamp - Wire Entry 90° to Panel | 前面板接线方式 | Bolt/Screw Clamp - Wire Entry 90° to Panel |
产品信息
| 类型 | Feed-Thru | 连接器性别 | F |
| 层数 | 1 | 每层位数 | 2 |
