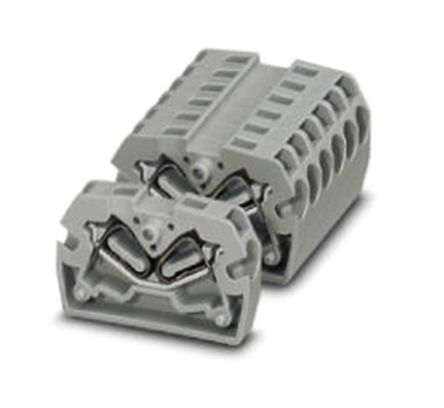

3073238
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | TERM BLOCK Terminal Block Tools & Accessories MSBV 2 5-M OG Phoenix Contact 2 路 无熔丝端子块, 表面安装, 弹簧笼端接, 800 V |
| 分类 |
商业参数
| 其他名称 | MSBV 2 5-M OG | 零件号别名 | MSBV25-MOG MSBV25MOG |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 24A |
机械参数
| 长度 | 1.260" (32.00mm) | 材料（通用） | 聚酰胺 |
| 高度（最大） | 0.866" (22.00mm) | 外壳颜色 | Orange |
| 安装类型 | Direct Mount | 剥线长度（范围） | 8mm |
| 端子宽度 | 5.2mm | 端接排数 | 弹簧笼 |
| 端接样式 | Spring Cage | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-28 AWG |
| 线规或范围 - mm² | 0.08-4mm² | ||
产品信息
| 类型 | Middle | 线路数量 | 2 |
| 层数 | 1 | ||
