点击放大查看

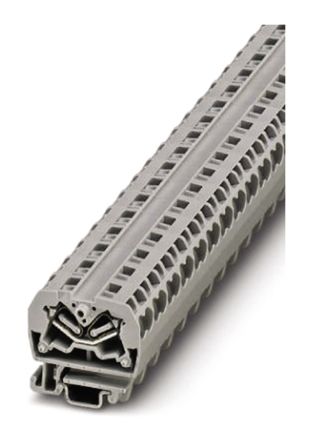

3073160
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | TERM BLOCK Fixed Terminal Blocks MSDBV 2,5 YE MSDBV25YE Feed Through Terminal Block |
| 分类 |
商业参数
| 其他名称 | MSDBV 2 5 YE | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 24A |
机械参数
| 颜色 | Yellow | 剥线长度（范围） | 8mm |
| 端子宽度 | 10.4mm | 端接排数 | 弹簧笼 |
| 端接样式 | Push In, Spring | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-28 AWG |
| 线规或范围 - mm² | 0.08-4mm² | ||
产品信息
| 类型 | Feed Through | 系列 | MSDBV |
| 层数 | 1 | ||
