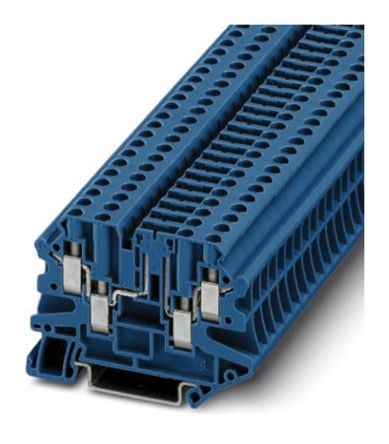

3073076
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Conn Feed-Through Modular Terminal Blocks F 4 POS Screw 20A TERM BLOCK DIN Rail Terminal Blocks UT 4-QUATTRO-TG BU UT4-QUATTRO-TGBU Disconnect Terminal Block |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UT 4-QUATTRO-TG BU |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 300V |
| 电流 - IEC | 20A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 20A |
| 最小输入电压 | 500V | ||
机械参数
| 颜色 | Blue | 深度 | 6.2 |
| 高度 | 55 | 导线线规 | 12-26 |
| 端接方式 | Screw | 排数 | 4 |
| 壳体材料 | Polyamide | 总长度 | 65.4 |
| 剥线长度（范围） | 9mm | 端子宽度 | 6.2mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 4 | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 10-26 AWG |
| 线规或范围 - mm² | 0.14-6mm² | ||
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | UT | 断开类型 | Open |
| 层数 | 1 | ||
