点击放大查看

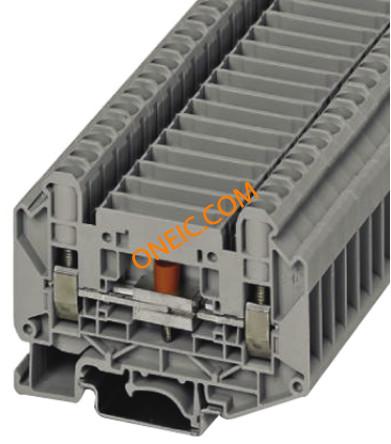

3070134

制造商	Phoenix Contact GmbH & Co. KG
描述	TERM BLOCK TB,Screw connection,Width:8.2mm,grey DIN Rail Terminal Blocks UT 6-T-HV UT6-T-HV Test Disconnect Terminal Block
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

商标名	CLIPLINE UT	其他名称	UT 6-T-HV
标准包装规格	50	标准包装数量	50

合规参数

RoHS

Compliant

材料阻燃等级

UL94 V-0

电气参数

电流 - IEC	41A	IEC电压	1000V
额定电压	1000 V	最大额定电流	57A

机械参数

颜色	Gray	导线线规	24 → 8 AWG
端接方式	Screw	剥线长度（范围）	12mm
端子宽度	8.2mm	端接样式	Screw
连接器颜色	Grey	位数	2
绝缘材料 - 材质	Polyamide (PA), Nylon	线规或范围 - AWG	8-24 AWG
线规或范围 - mm²	0.2-10mm²

产品信息

类型	Disconnect	系列	UT
层数	1

文档与媒体

PDF 文档

3070134
