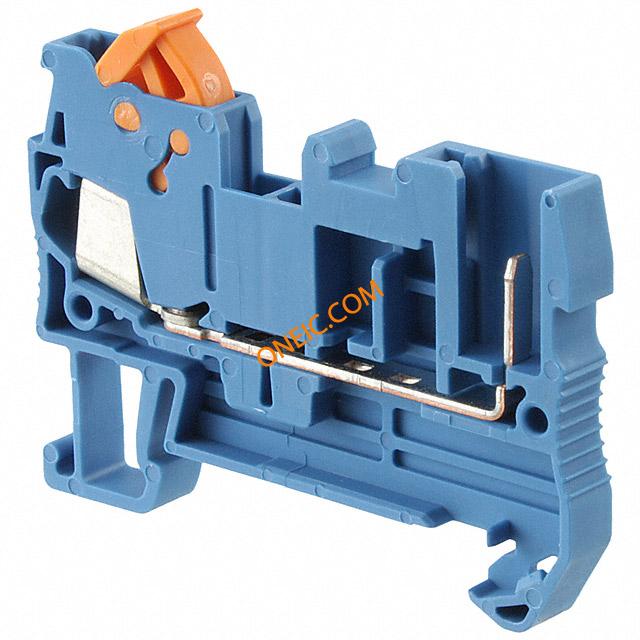

点击放大查看
3050086
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks QTC 1.5/ 1P BU Misc Products TERMINAL BLOCK 5.2MM 2POS BLUE Pluggable quick connection terminal QTC 1,5/ 1P BU QTC15/1PBU |
| 分类 |
商业参数
| 商标名 | CLIPLINE QTC | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 1 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 10A | UL电压 | 600V |
| 电流 - IEC | 17.5A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 17.5 A |
机械参数
| 颜色 | Blue | 宽度 | 5.2 mm |
| 长度 | 2.106" (53.50mm) | 重量 | 3.197 lbs |
| 导线线规 | 24 | 高度（最大） | 1.843" (46.80mm) |
| 外壳颜色 | Blue | 安装类型 | DIN Rail |
| 端子宽度 | 5.2mm | 端接样式 | Plug Receptacles, IDC |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 16-24 AWG |
| 线规或范围 - mm² | 0.25-1.5mm² | ||
产品信息
| 类型 | Plug Connection | 系列 | QT |
| 层数 | 1 | ||
