点击放大查看

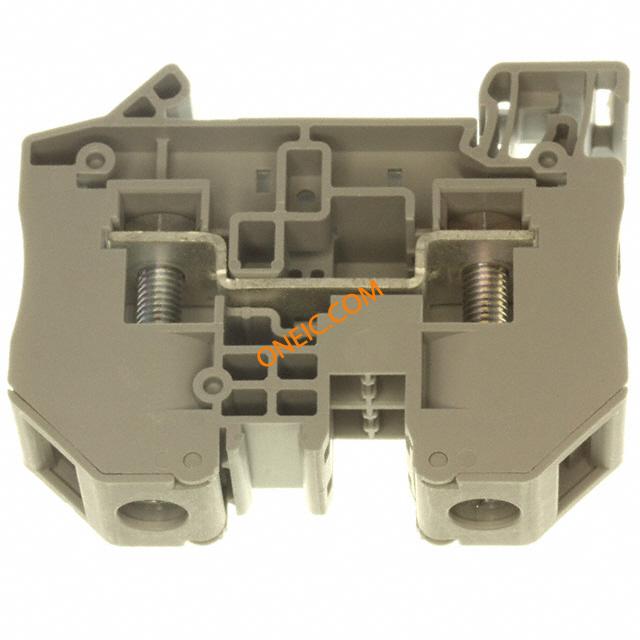

3049026
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック RT 5 10-26AWG GRAY Conn Feed-Through Modular Terminal Blocks F 2 POS Screw 41A CONN TERM BLK W/BOLT CONNECT T/H DIN Rail Terminal Blocks RT 5 10-26AWG GRAY Conn;TermBlk;DINRail;FeedThru;BoltConn;2;26-10AWG;Gray;16.3mmW Splice terminal: rail; ways:1; terminals:2; grey; polyamide; 1000V Phoenix Contact RT 5 Clipline 系列 灰色 馈通端子块 , 41A, 1000 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE RT | 其他名称 | 277-2059 |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 41A | IEC电压 | 1000V |
| 额定电压 | 1 kV | 极数 | 1 |
| 连接器阻抗 | rail | 最大额定电流 | 41 A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 16.3 |
| 宽度 | 16.3 mm | 高度 | 51mm |
| 长度 | 66 mm | 重量 | 1.416602 oz |
| 导线线规 | 26 | 端接方式 | Screw |
| 基体材料 | polyamide | 安装类型 | screw terminal |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 66 | 包装数量 | 50 |
| 端子宽度 | 16.3mm | 端接排数 | 栓 |
| 内径（直径） | 5.3mm | 端接样式 | Bolt and Nut |
| 连接器颜色 | grey | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 螺纹/螺钉/孔尺寸 | M5 | 线规或范围 - AWG | 10-26 AWG |
| 线规或范围 - mm² | 0.1-6mm² | ||
产品信息
| SPG | 50 | 类型 | Feed-Through Modular Terminal Blocks |
| 连接器性别 | F | 系列 | RT |
| 单元数量 | 1 | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | RT5 |
