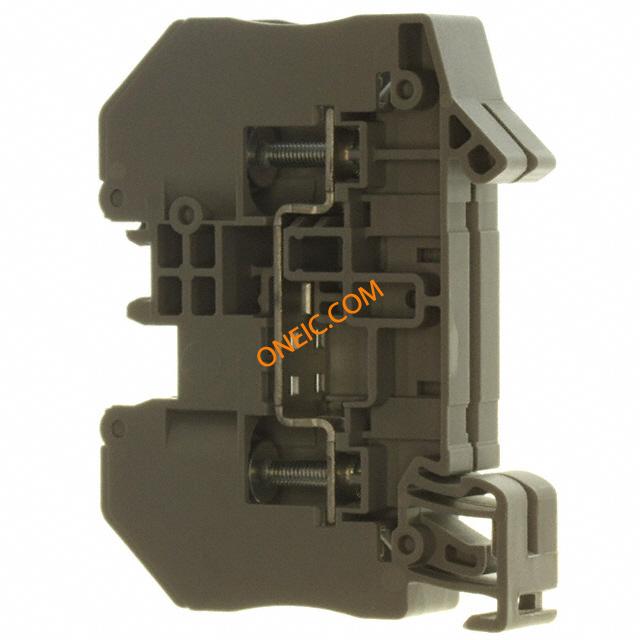

3049013
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック RT 3 PE 14-26AWG GRAY Conn Feed-Thru F 2 POS Cable Mount 24A CONN TERM BLK W/BOLT CONNECT T/H DIN Rail Terminal Blocks RT 3 PE 14-26AWG GRAY Conn;TermBlk;DINRail;FeedThru;BoltConn;2;26-14AWG;Gray;12.3mmW Phoenix Contact RT 3 Clipline 系列 灰色 馈通端子块 , 24A, 1000 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE RT | 其他名称 | 277-2058 |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 1000V |
| 额定电压 | 1 kV | 最大额定电流 | 24 A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 12.3 |
| 宽度 | 12.3 mm | 高度 | 58.5 |
| 长度 | 66 mm | 重量 | 3.527043 oz |
| 导线线规 | 26 | 安装类型 | Cable Mount |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 66 | 端子宽度 | 12.3mm |
| 端接排数 | 栓 | 端接样式 | Bolt and Nut |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 14-26 AWG |
| 线规或范围 - mm² | 0.1-2.5mm² | ||
产品信息
| 类型 | Feed-Thru | 连接器性别 | F |
| 系列 | RT | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | RT3 |
