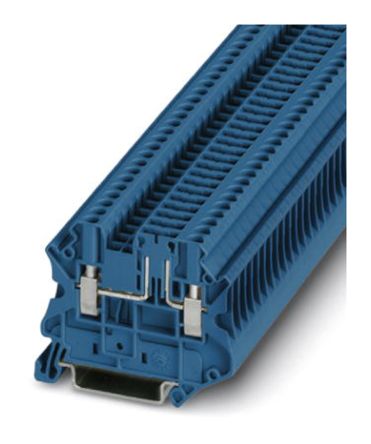

点击放大查看
3046582
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Conn Universal Terminal Blocks F 2 POS Screw 20A TERM BLOCK DIN Rail Terminal Blocks UT 2,5-TG-P/P BU UT25-TG-P/PBU Phoenix Contact UT 系列 蓝色 断开接线排 , 20A, 400 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UT 2 5-TG-P/P BU |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 300V |
| 电流 - IEC | 20A | IEC电压 | 400V |
| 额定电压 | 400 V | 最大额定电流 | 20A |
| 最小输入电压 | 400V | ||
机械参数
| 颜色 | Blue | 深度 | 5.2 |
| 高度 | 55 | 导线线规 | 12-26 |
| 端接方式 | Screw | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 57.8 |
| 剥线长度（范围） | 9mm | 端子宽度 | 5.2mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-26 AWG |
| 线规或范围 - mm² | 0.14-4mm² | ||
产品信息
| 类型 | Universal Terminal Blocks | 连接器性别 | F |
| 系列 | UT | 断开类型 | Open |
| 叠层数 | 单层 | 层数 | 1 |
