点击放大查看

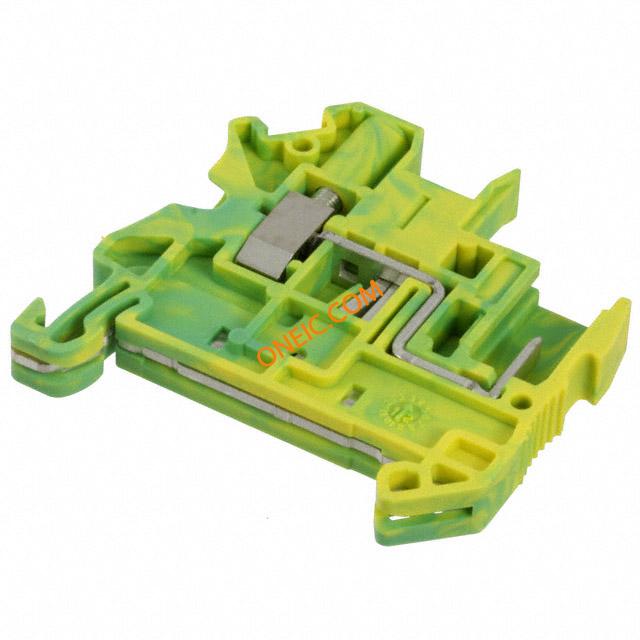

3045606
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UT 4/1P-PE Conn Terminal Block F 2 POS Screw CONN TERM BLK GROUND 10-26AWG TB,Width:6.2mm,green-yellow Pluggable screw terminal block UT 4/ 1P-PE Conn;TermBlk;DINRail;Ground;Screw/Plug-in;26-10AWG;6.2mmW;Green-YL |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 颜色 | Green / Yellow | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 47.5 mm, 55 mm |
| 长度 | 1.874" (47.60mm) | 重量 | 0.464558 oz |
| 导线线规 | 26 → 10 AWG | 端接方式 | Screw |
| 高度（最大） | 2.165" (55.00mm) | 外壳颜色 | Green, Yellow |
| 安装类型 | DIN Rail | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 47.6 | 剥线长度（范围） | 9mm |
| 端子宽度 | 6.2mm | 端接样式 | Plug Receptacles, Screw |
| 连接器颜色 | Green/Yellow | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-26 AWG | 线规或范围 - mm² | 0.14-6mm² |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | UT | 层数 | 1 |
